Machines with short delivery time, partially, or completely assembled at FERMAT, or disassembled in warehouse.
rezerva

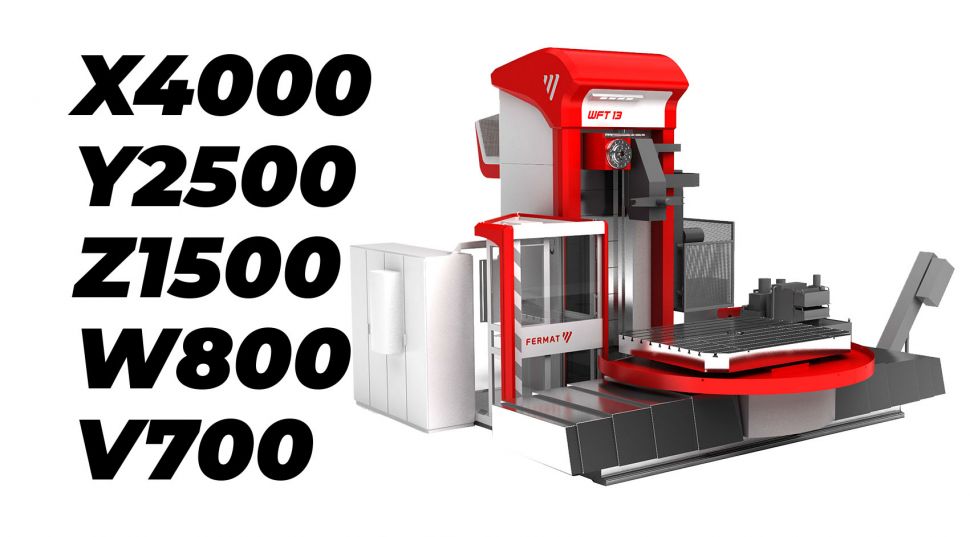

Machine equipped with a movable operator cabin, ATC 40, CTS cooling (max. 70 bar) and chip conveyor.
| Parameter
|
units |
|
| Table travel - X-axis
|
mm | 4000 |
| Headstock travel - Y-axis
|
mm | 2500 |
| Column travel - Z-axis
|
mm | 1500 |
| Spindle travel - W-axis
|
mm | 800 |
| Ram travel - V-axi
|
mm | 700 |
| Spindle diameter
|
mm | 130 |
| Max. spindle speed
|
rpm | 3400 |
| Table plate size
|
mm | 1800x2600 |
| Table load
|
kg | 20000 |
| Max. power
|
kW | 41 |
| Max. torque
|
Nm | 2099 |
| Control system
|
Heidenhain 640 | |
| Availability | WEEK 34, 2023 | |
