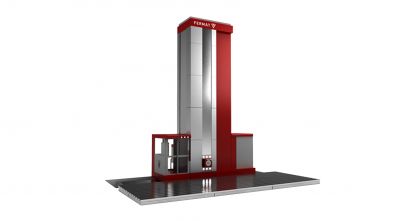

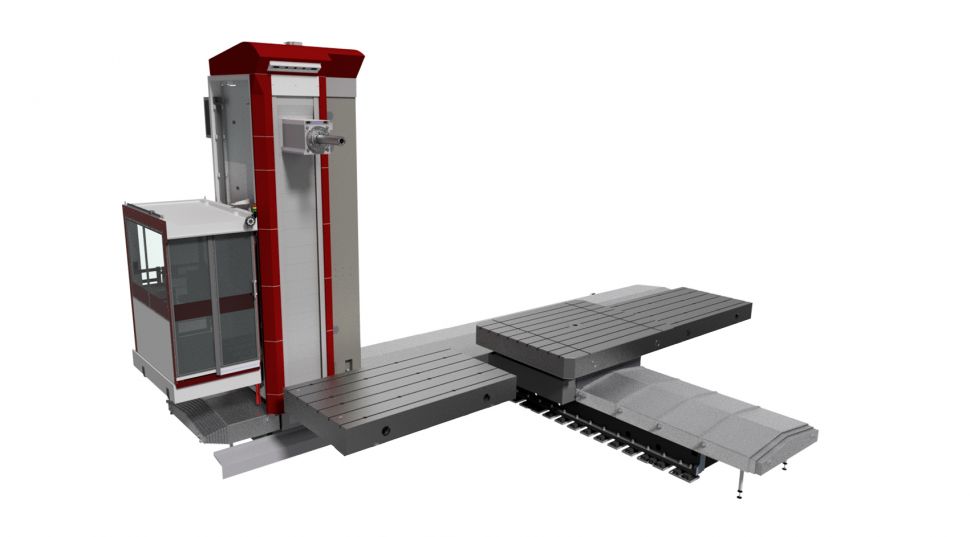

WF 13/15 R (L)

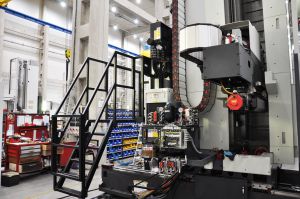

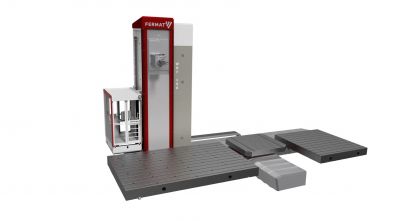

FERMAT’s floor-type horizontal boring mill for powerful and precise, high-performance coordinate drilling, boring, and threading large and heavy workpieces.
- Spindle diameter 130 mm or 150 mm; spindle travel 800 mm.
- Ram stroke 700 mm.

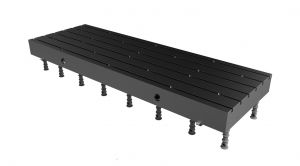

- Equipped with floor plates and/or rotary tables.

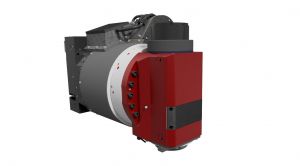

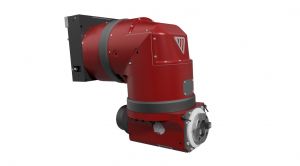

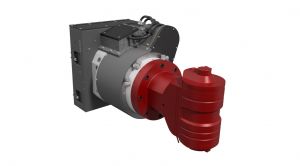

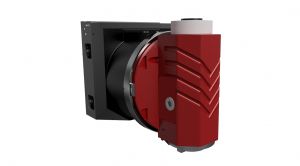

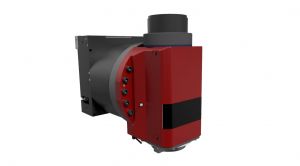

- Fully compatible with a wide range of accessories and automatic milling heads.
|
|
units | WF 13/15 R | |
| Spindle diameter | mm | 130 | 150 |
| Spindle taper |
|
SK 50 (DIN, MAS 45°, ANSI)/BIG+/HSK100
|
|
| Spindle speed (max.) | rpm | 3400 (opt. 4000) | 3000 (opt. 3500) |
| Main Power Heidenhain or SIEMENS CNC (S1/S6) | kW | 41/61.5; 53/77.9 | |
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm | 2099/3149; 2713/3989 | |
| Main Power FANUC CNC (S1/S3) | kW | 37/45; 53/77.9 | |
| Max. Torque FANUC CNC (S1/S3) | Nm | 2210/2687; 2713/3989 | |

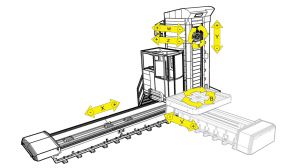

| X-axis Cross-travel of Column | mm | 4000 - 22000 | |
| Y-axis Vertical Travel of Headstock | mm | 2000/2500/3000/3500 | |
| Z-axis Longitudinal Travel of Ram | mm | 700 | |
| W-axis Spindle Travel | mm | 800 | |
| Rapid Feed X, Y | mm/min. | 20000, 12000 | |
| Rapid Feed Z, W | mm/min. | 12000, 10000 | |

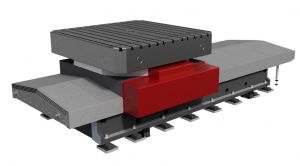

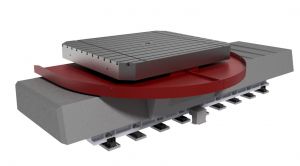

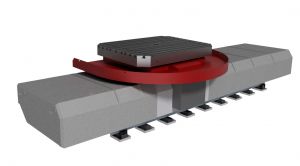

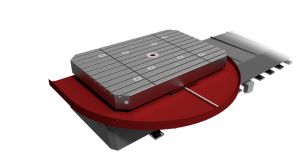

| Rotary table - optional accessory | |||
| Table T10 | mm | 1200x1200, 1200x1400, 1400x1600, 1600x1600, 1400x1800, 1600x1800
|
|
| Table T20 | mm | 1600 x 1800/1800 x 2200/1800 x 2600/2000 x 2400/2500 x 2500/2000 x 3000
|
|
| Table T25/50 | mm | 2000 x 2000, 2000 x 2500, 2500 x 2500, 2500 x 3000, 3000 x 3000, 3000 x 3500, 3500 x 3500, 2500 x 5000 | |

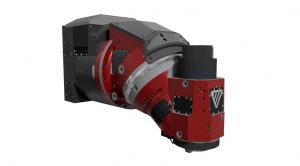

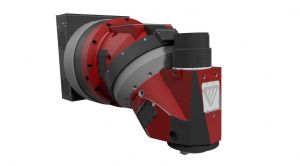

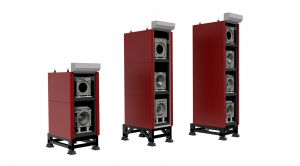

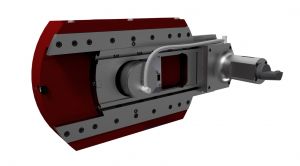

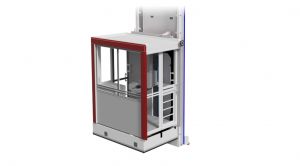

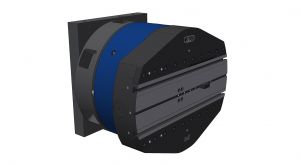

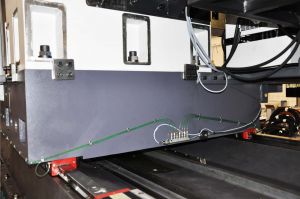

Accessories

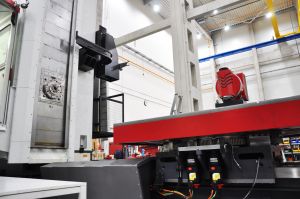

Gallery
