Milling Machines

	Milling Machines - Image

Milling machines are designed for machining of workpieces of up to 100 tons. The machines are equipped with a milling head - universal, right-angle, or straight.

Social networks

Similar products

FGU

Table-type milling machine designed for fast and accurate milling and drilling of small and medium-size workpieces of up to 20 tons.

  • Optional ram stroke 1400 mm.
  • Equipped with a rotary table.
  • Great variety of optional accessories and milling heads, such as continuously positioned universal milling head UHAmi SDHS



units FGU
Spindle taper
SK 50 (ISO50) / BT50 / CAT50 / BIG+
Spindle speed (max.) rpm 5000
Max. Power Heidenhain or SIEMENS CNC (S1/S6) kW 41 / 61,5; 53 / 77,9
Max. Torque Heidenhain or SIEMENS CNC (S1/S6)
Nm 1230 / 1846; 1591 / 2338
X-axis travel of Table mm 4000 - 9500
Y-axis travel of Headstock mm 2500 / 3000
Z-axis travel of Column mm 2400
Rapid Feed X, Y mm/min. 25000, 25000
Rapid Feed Z mm/min. 25000



Gallery

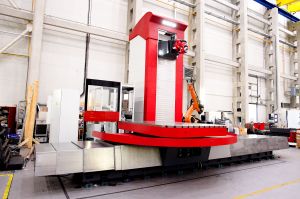

FGU - Image1

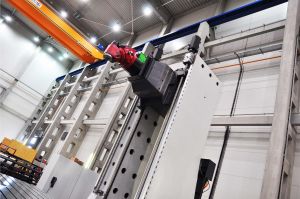

FGU - Image2

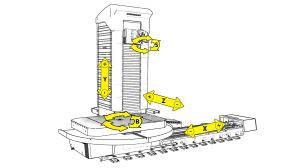

FGU - Image3

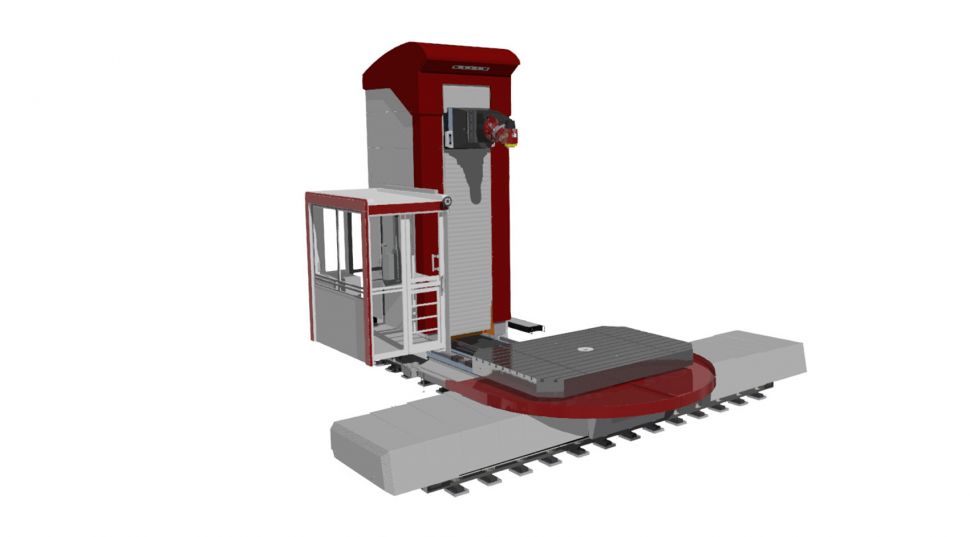

FGU - Image4

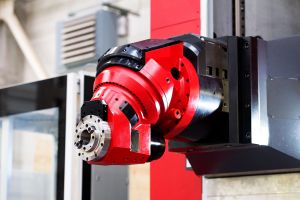

FGU - Image5

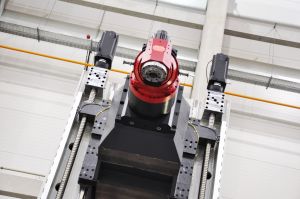

FGU - Image6
