Machines with short delivery time, partially, or completely assembled at FERMAT, or disassembled in warehouse.

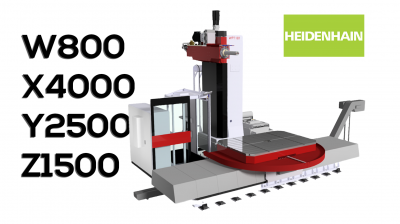

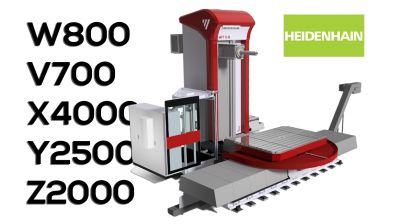

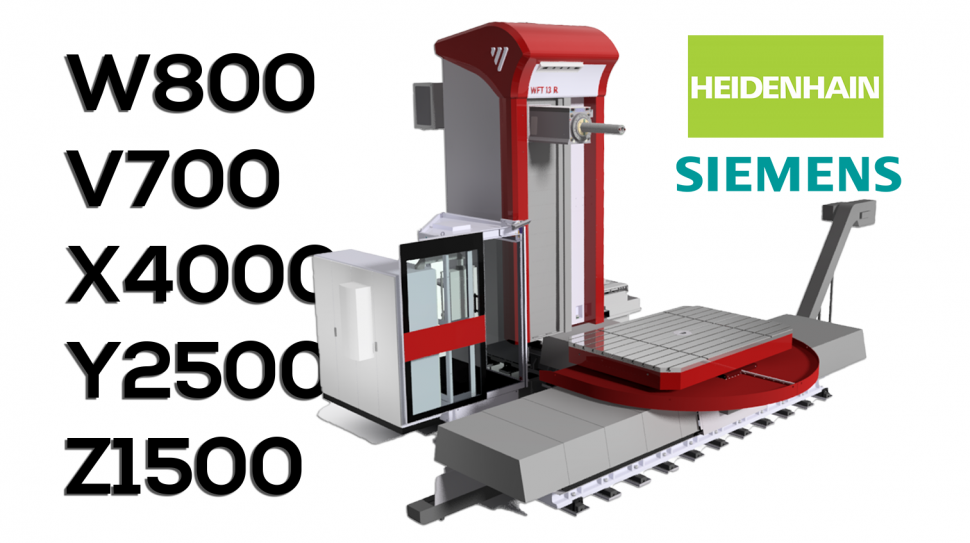

WFT 13-R Horizontal boring mill with ram stroke
The WFT 13-R is most popular FERMAT table-type horizontal boring mill with ram stroke, for high-performance machining with maximum utilization of accessories and milling heads for efficient machining of workpieces of up to 20 tons.
| Parameter
|
units |
|
| Table travel - X-axis
|
mm | 4000 |
| Headstock travel - Y-axis
|
mm | 2500 |
| Column travel - Z-axis
|
mm | 1500 |
| Spindle travel - W-axis
|
mm | 800 |
| Ram stroke - V-axis | mm | 700 |
| Spindle diameter
|
mm | 130 |
| Max. spindle speed
|
rpm | 3400 |
| Table plate size
|
mm | 1800x2600 |
| Table load
|
kg | 20000 |
| Max. power
|
kW | 41 |
| 53Max. torque
|
Nm | 2099 |
| Control system
|
HH 640/Sinumerik ONE | |
Gallery
