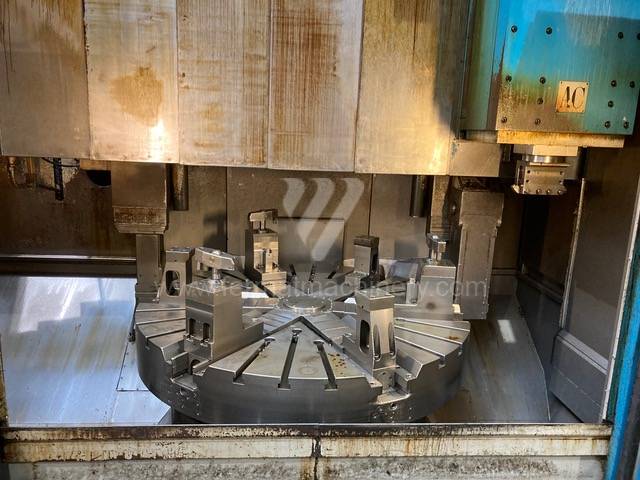

Vertical Lathes / Single column / AC20T
-
Inventory number 242051
-
Machine type AC20T
-
Producer PIETRO CARNAGHI
-
YOM 1996
| Control system Siemens | Sinumerik 840 C |
| Max. diameter of workpiece | 2000 mm |
| Clamping diameter of rotary table | 1750 mm |
| Max. load of table | 10000 kg |
| Max. workpiece height | 1500 mm |
| Ram travel (Z) | 750 mm |
| Ram size | mm |
| Driven Tools | YES |
| Tool magazine | YES |
| Number of positions in magazine | 12 |
| Axis C | ° |
Subject to change of technical parameters.
Description
Machine under the power. Possible to be tested.
C axis
live tools
