Lathes / CNC multi-axis / TC 320 LTY
-
Inventory number 242034
-
Machine type TC 320 LTY
-
Producer XYZ
-
YOM 2013
| Control system Siemens | Sinumerik 828 D |
| Turn table diameter | 320 mm |
| Turning lenght | 550 mm |
| Sloping bed | YES |
| Y axis | YES |
| Travel Y-axis (lathe) | 100 +/- 50 mm |
| Counterspindle | |
| Spindle bore | mm |
| Milling head | NO |
| Driven Tools | YES |
| Number of tool positions (driven) | 12/12 |
| Bar loader | |
| Spindle speed | 0 - 3300 /min. |
| Travel X-axis | 270 mm |
| Travel Z-axis | 600 mm |
| Machine weight | 6 950 kg |
| Machine dimensions l x w x h | 3909x2060x2030 (zástavbové) mm |
Subject to change of technical parameters.
Description

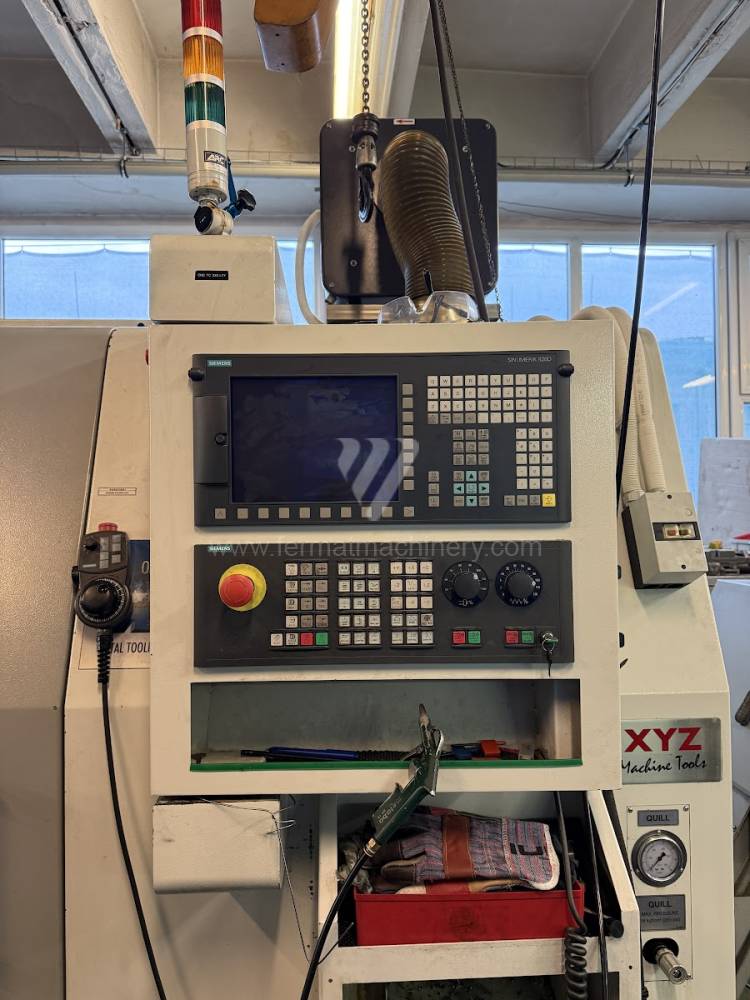

control system: Sinumerik 828D with ShopTurn
diameter above the bed: 450 mm
chuck diameter - 3 jaws: 304 mm
rod diameter: 78 mm
spindle through hole: 91 mm
air blow gun
morse horse 5
chip conveyor
new spindle bearings
replaced control system board
