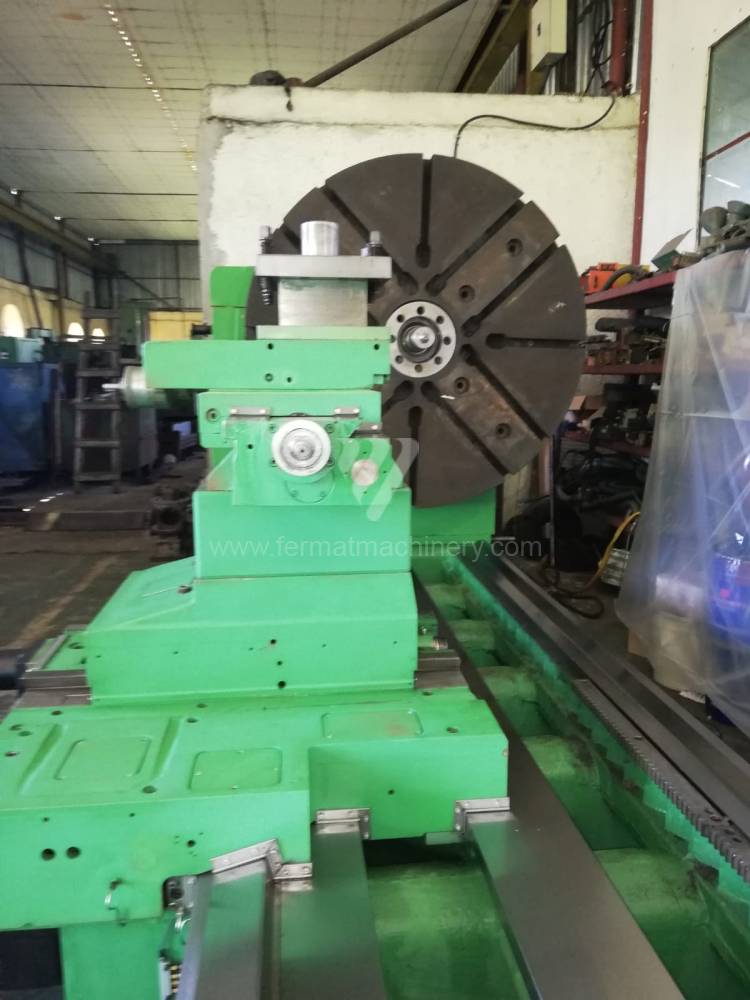

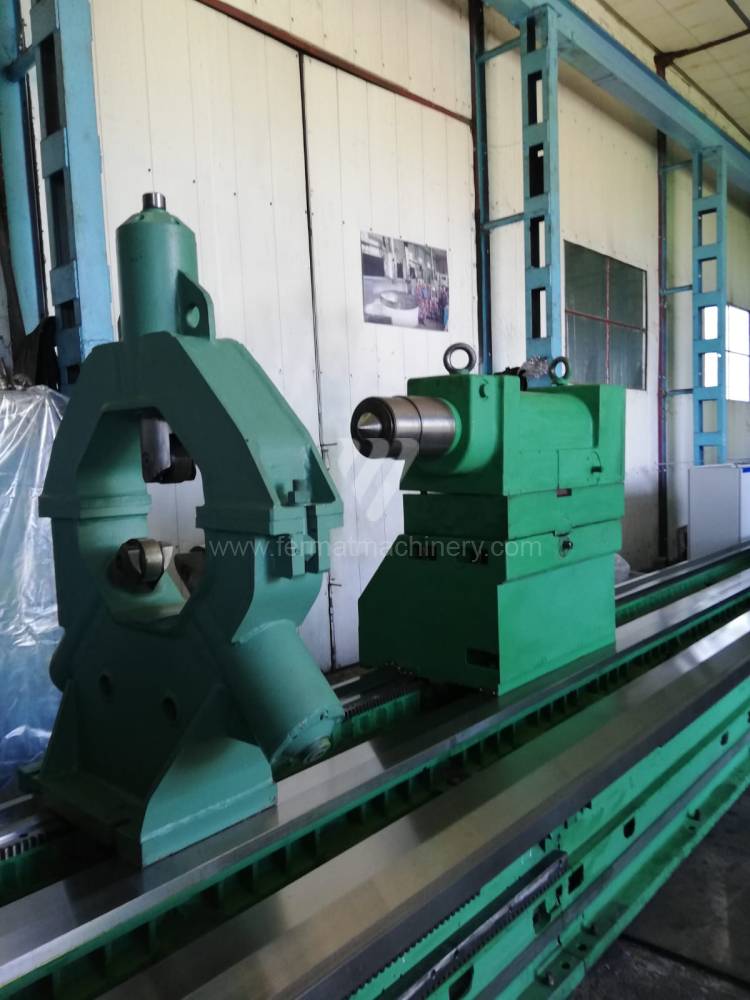

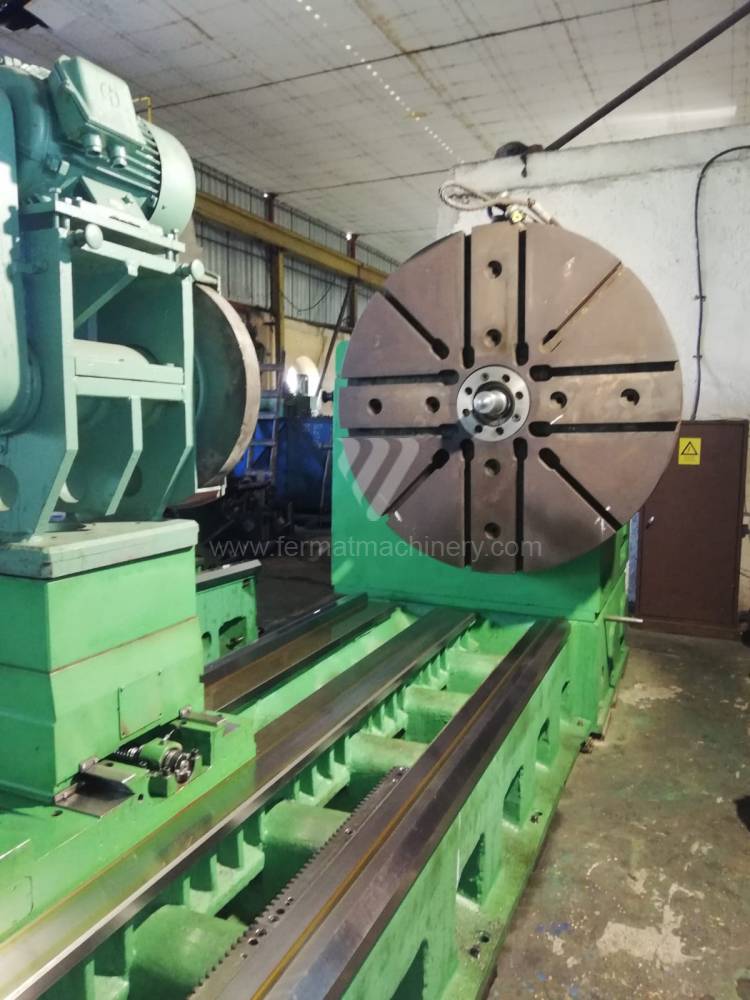

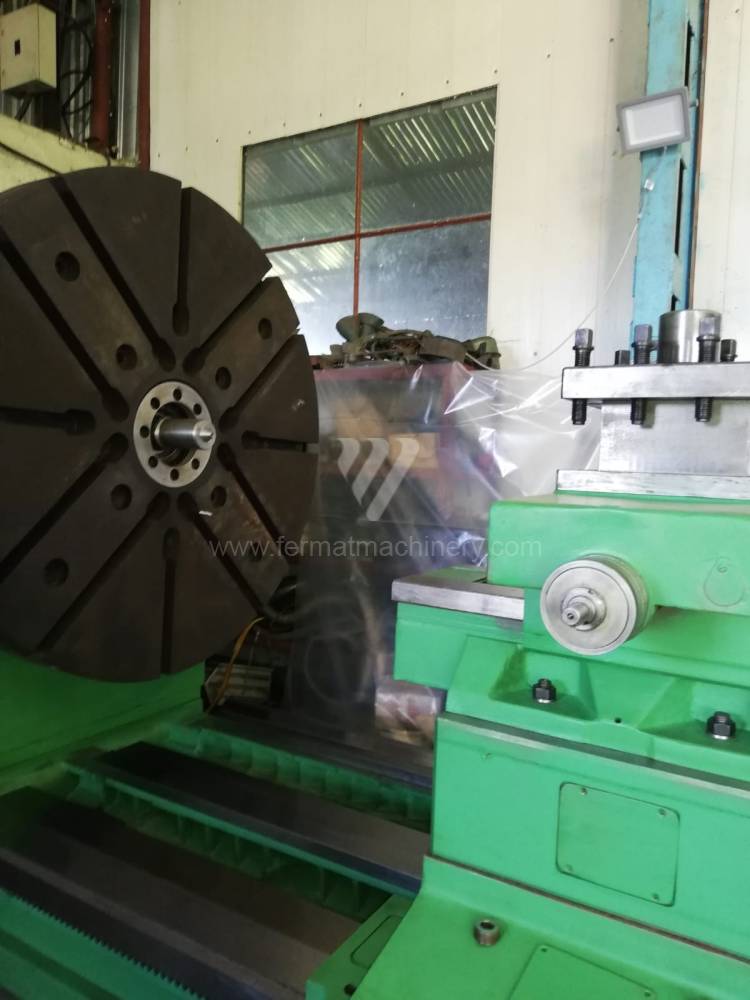

Lathes / CNC - diameter over 800 mm / SNG 1600x10000
-
Inventory number 231675
-
Machine type SNG 1600x10000
-
Producer NILES-SIMMONS Industrieanlagen GmbH
| Control system Fanuc | 0i-TF |
| Turn table diameter | 0 in |
| Turning lenght | 400 in |
| Sloping bed | NO |
| Spindle bore | 0 in |
| Turret head | NO |
| Swing over bed | 64 in |
| Distance between centres | 400 in |
| Spindle speed | 1 - 200 /min. |
| Feeding speed | 1-3 m/min |
| Main motor power | 60 kW |
| Max. weight of workpiece | 22000 kg |
| Machine weight | 55 000 kg |
Subject to change of technical parameters.
Description
Equipped with:
- FANUC Oi TF+ Gen. 2023 ( with antivibration controll ) or Siemens CNC at request

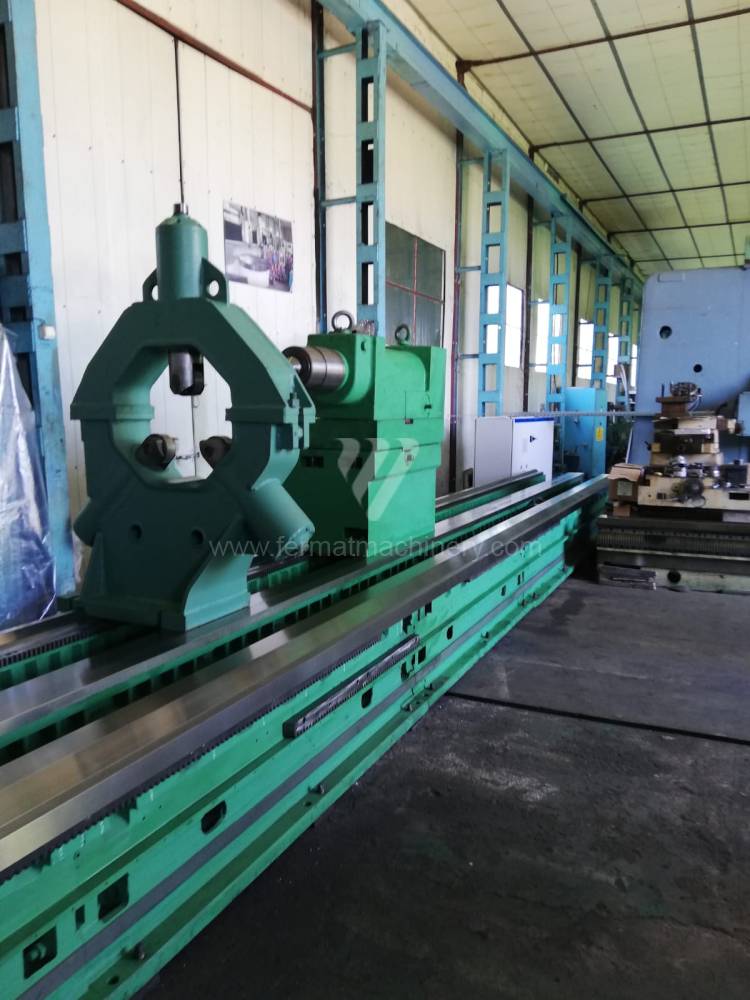

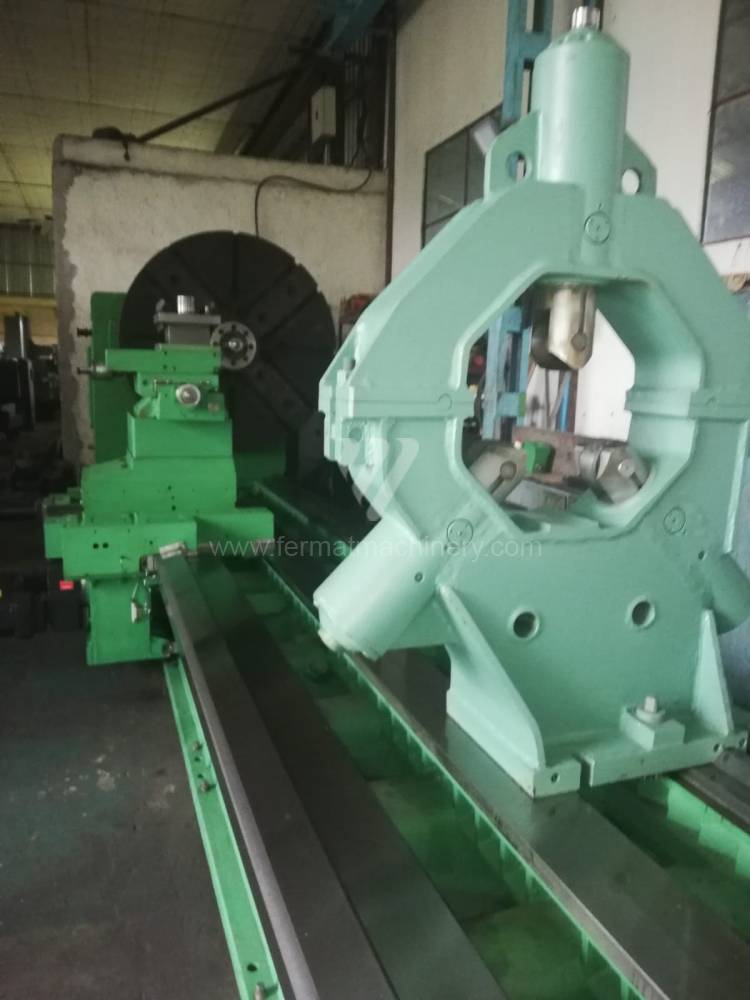

- 4 linets
- Milling device

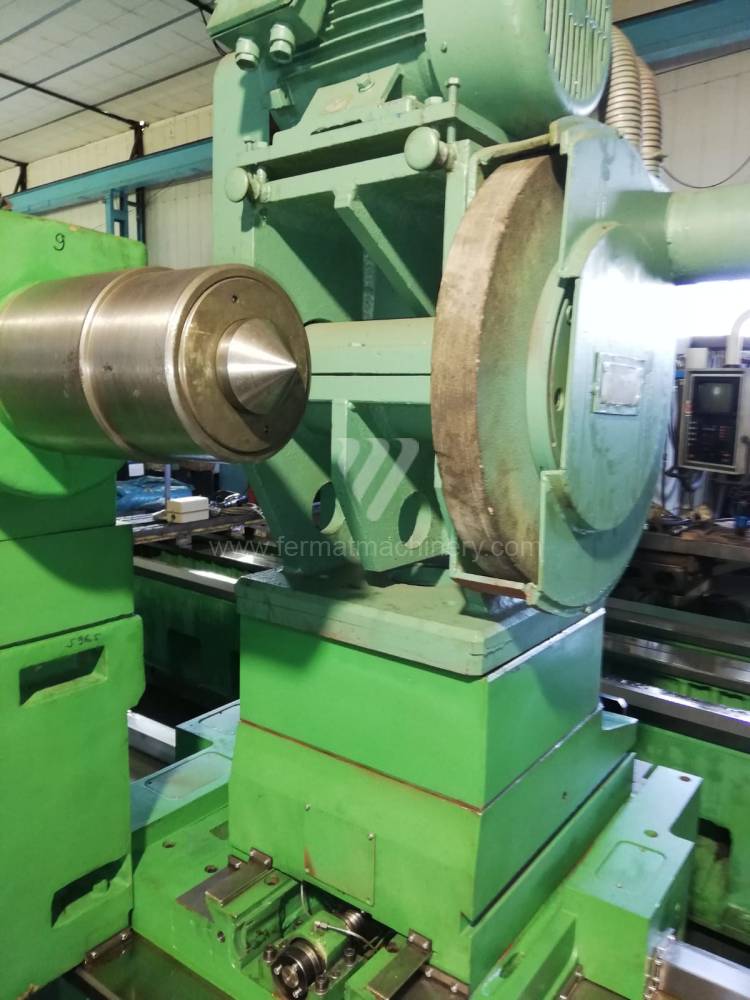

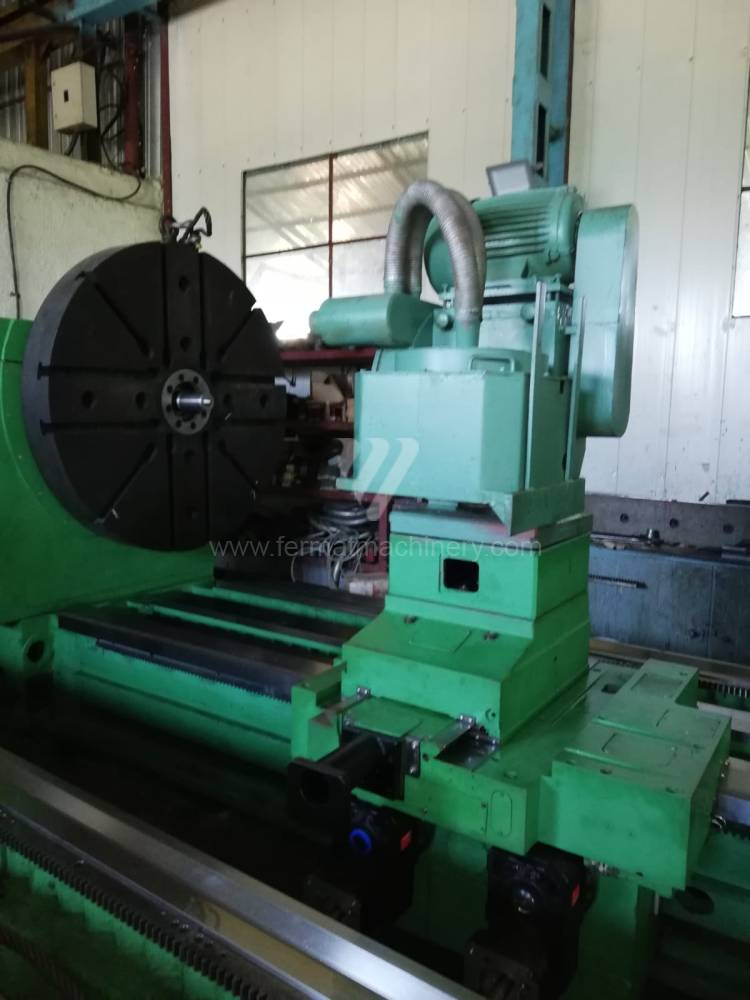

- Grinding device
- Ready in 6-7 from order confirmation
-1 year warranty
Similar machines
| YOM: | 2002 |
| Control system | YES |
| Control system ECS | 2402 |
| Turn table diameter | 815 mm |
| Turning lenght | 2000 mm |
| Sloping bed | NO |
| Spindle bore | 137 mm |
| Turret head | NO |
| Machine weight | 5800 kg |
| Machine dimensions l x w x h | 4625 x 2250 x 1795 mm |
| Travel X-axis | 450 mm |
URSUS TCH 800
CMT
Inventory number: 241551
| YOM: | 0 |
| Control system | YES |
| Control system Siemens | 802 D si |
| Turn table diameter | 4000 mm |
| Turning lenght | 6000 mm |
| Sloping bed | NO |
| Spindle bore | mm |
| Turret head | NO |
| Face plate diameter | 3150 mm |
| Max. weight of workpiece | 25000 kg |
| Facing plate speed | 09 - 90 /min |
| Travel X-axis | 6000 mm |
| Travel Z-axis | 1500 mm |
| Main motor power | 75 kW |
| Machine weight | 62000 kg |
| Machine dimensions l x w x h | 16500 x 5200 x 3100 mm |
DP 4000 CNC
NILES-SIMMONS Industrieanlagen GmbH
Inventory number: 241069
| YOM: | 1974 |
| Control system | NO |
| Turn table diameter | 1250 mm |
| Turning lenght | 3000 mm |
| Sloping bed | NO |
| Spindle bore | mm |
| Turret head | NO |
| Swing over cross slide | 900 mm |
| Max. weight of workpiece | 14 000 kg |
| Machine dimensions l x w x h | 8000 x 2100 x 3000 mm |
| Machine weight | 16 350 kg |
SRM 125/3000 NC
ŠKODA MACHINE TOOL a.s.
Inventory number: 251076
| YOM: | 0 |
| Control system | YES |
| Control system Fanuc | 0i - TC |
| Turn table diameter | 360/250 mm |
| Turning lenght | 500 mm |
| Sloping bed | YES |
| Spindle speed | 0 - 6000 /min. |
| Machine weight | 3200 kg |
| Machine dimensions l x w x h | 2432 × 1643× 1900 mm |
| Max. weight of workpiece | 85 kg |
| Max. bar diameter | 51 mm |
GLS 150
Goodway
Inventory number: 251235
| YOM: | 1994 |
| Control system | YES |
| Control system Siemens | Sinumerik 810 |
| Turn table diameter | 1320 mm |
| Turning lenght | 3000 mm |
| Sloping bed | NO |
| Spindle bore | 140 mm |
| Turret head | NO |
| Spindle speed | 0 - 700 /min. |
| Main motor power | 47 kW |
| Max. weight of workpiece | 7000 kg |
