Grinding machines / Surface / SZ 16-12-10
-
Inventory number 201402
-
Machine type SZ 16-12-10
-
Producer Heckert - Starrag Group
-
YOM 2008
| Max. length of grinding | 400 in |
| Max. width of grinding | 71.8 in |
| Max. workpiece height | 48 in |
| Spindle bearing grinders | Vertikální |
| Machine weight | 70000 kg |
| Machine dimensions l x w x h | 1008 x 400 x 204 in |
| Max. weight of workpiece | 4t/m (40.000kg) kg |
| Max. dimensions of workpiece | 400 x 64 in |
Subject to change of technical parameters.
Description
The machine is in a good technical condition.
Control system NC
Max. travel of table 20000 mm
Table dimensions 10000x1600 mm
2 spindles
Main perimeter spindle speed 860 rpm
Diameter of the main circumferential spindle wheel 630 mm, width 145 mm
universal spindle speed 1300 rpm
Universal spindle wheel diameter 510 mm, width 90 mm
Machine length 25200 mm
Machine width 10000 mm
Machine height 5100 mm
Distance between stands 1800 mm
Similar machines
| YOM: | 0 |
| Control system | NO |
| Max. length of grinding | 1000 mm |
| Max. width of grinding | 320 mm |
| Max. workpiece height | 350 mm |
| Spindle bearing grinders | Horizontální |
| Main motor power | 4 kW |
| Total input | 6,8 kVA |
| Machine dimensions l x w x h | 4100 x 1750 x 2125 mm |
| Machine weight | 3200 kg |
BPH 320 A
TOS Hostivař
Inventory number: 231741
| YOM: | 1971 |
| Control system | NO |
| Max. length of grinding | 630 mm |
| Max. width of grinding | 230 mm |
| Max. workpiece height | 350 mm |
| Spindle bearing grinders | Horizontální |
| Machine weight | 1600 kg |

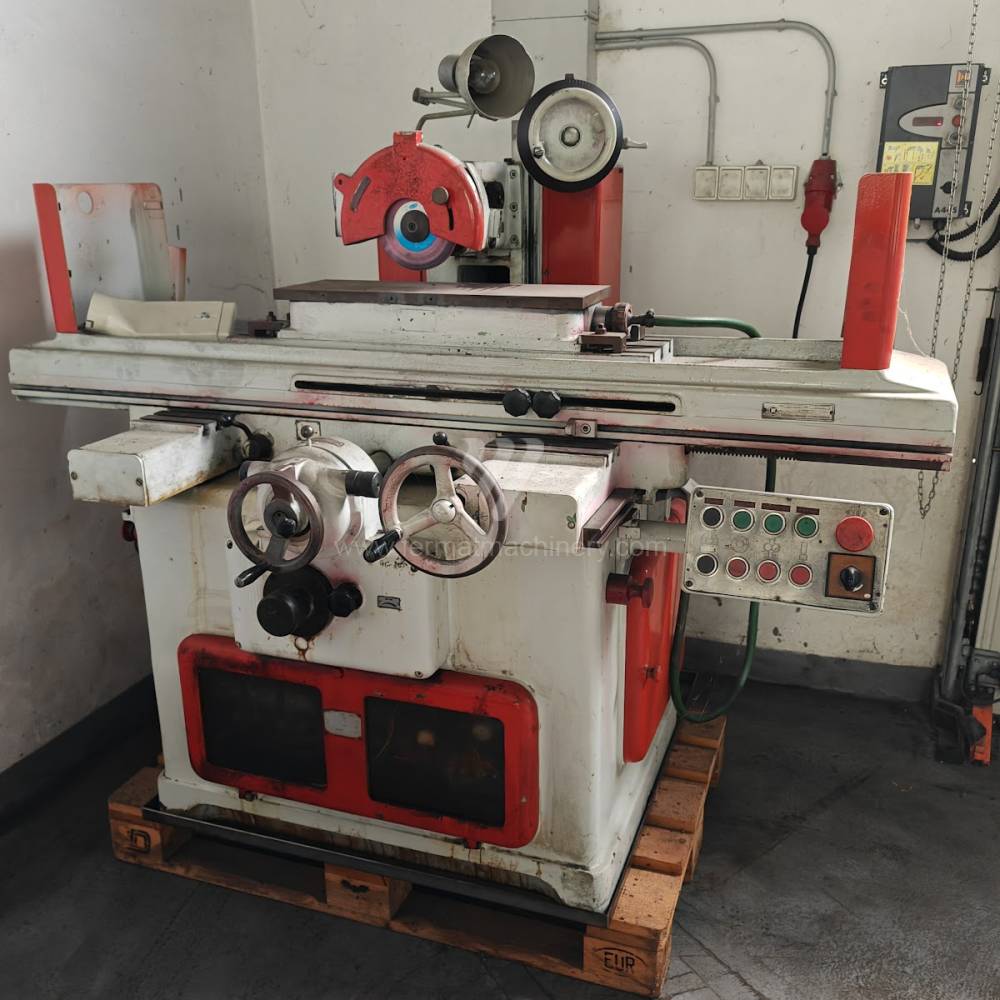

BPH 20 N
