Cutting equipments / Laser cutting machine / SUPER TURBO - X510 Mk III G
-
Inventory number 241530
-

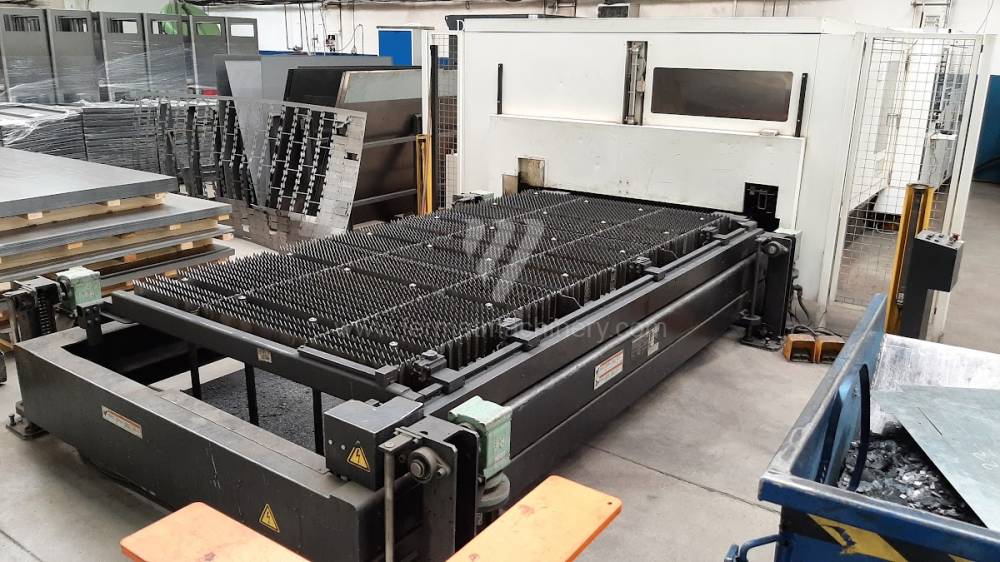

Machine type SUPER TURBO - X510 Mk III G
-
Producer MAZAK
-
YOM 2014
| Max. length of workpiece | 122 in |
| Max. workpiece width | 61 in |
| Max. plate thickness | 0.6 in |
| Power of laser | 2500 W |
| Fiber | NO |
| Travel X-axis | 122.8 in |
| Travel Y-axis | 61.8 in |
| Travel Z-axis | 3.6 in |
| Max. load of table | 805 kg |
| Machine weight | 12 700 kg |
Subject to change of technical parameters.
Description
NC MAZATROL Preview.
CO2 laser model YB-L25C10T.
The machine is in good technical condition, under power, after agreement is possible to test it.
