Cutting equipments / Laser cutting machine / PLATINO FIBER
-
Inventory number 221383
-

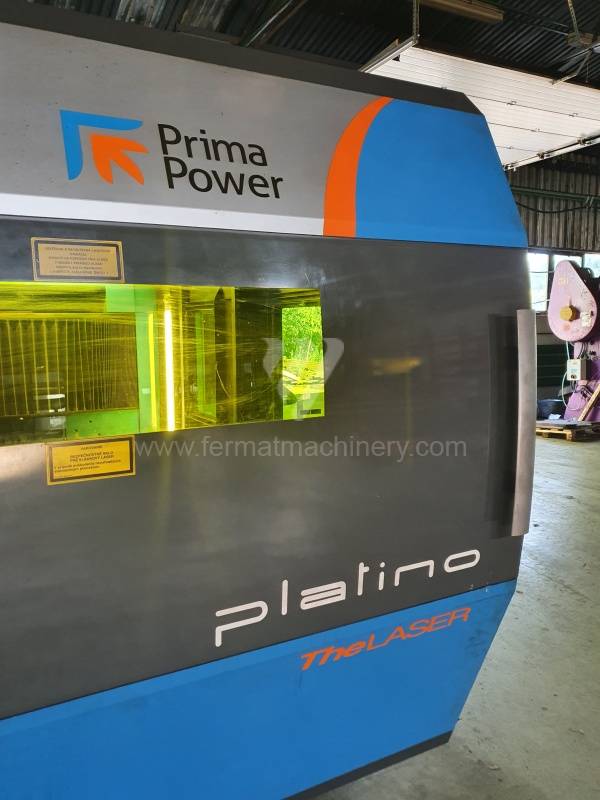

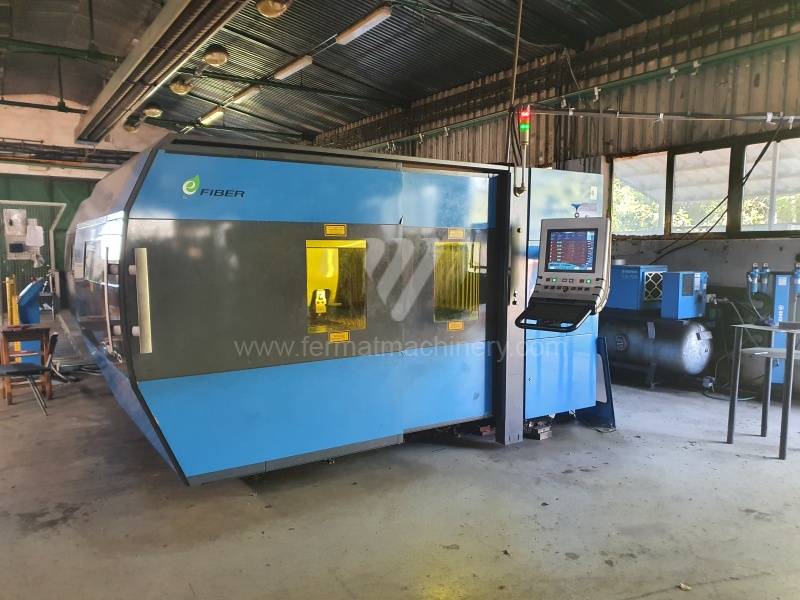

Machine type PLATINO FIBER
-
Producer Prima Power
-
YOM 2014
| Max. length of workpiece | 122.6 in |
| Max. workpiece width | 62.4 in |
| Max. plate thickness | 0.8 in |
| Power of laser | 3000 W |
| Fiber | YES |
| Travel Z-axis | 6 in |
| Machine dimensions l x w x h | 391.88 x 150.28 x 88 in |
| Machine weight | 10000 kg |
Subject to change of technical parameters.
Description
The machine is in good technical condition, under power, after agreement is possible to test it.
Carbon steel (S420MC, 1.10980) - 20 mm
Stainless steel (X5CrNi18-10, 1.4301) - 8 mm
Aluminum AlMg3 (3.3535) - 8 mm
Copper, brass (Cu-ETP, CuZn37) - 6 mm
