12Alesatrice orizzontale Tabella - mandrino di diametro di 90
| Nome del prodotto | Nr. di inventario | Produttore | Anno di fabbricazione | Parametri | ||
|---|---|---|---|---|---|---|
 |

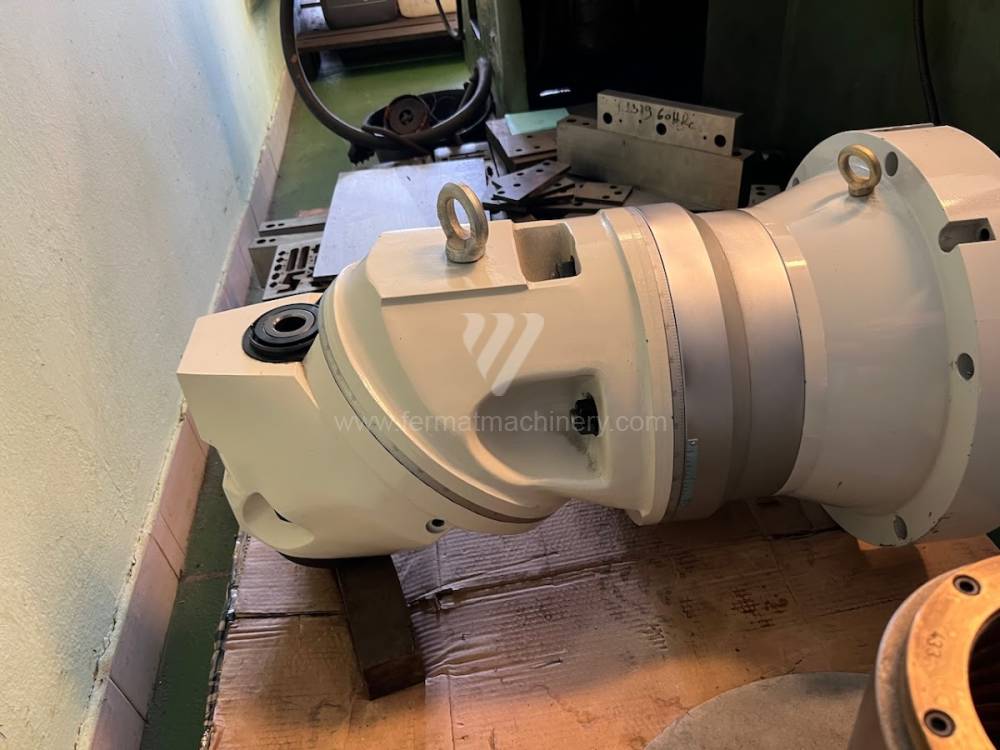

Microcut HBM-4 |
221640 | Buffalo Machinery | 2017 | Sistema di controllo Fanuc: 31i - B : 110 Spostamento asse X: 2200 mm : 1600 : 35 - 3000 : Sì |
|
 |
WH 10 CNC |
251364 | TOS Varnsdorf | Sistema di controllo Heidenhain: TNC 620 : 100 Spostamento asse X: 1250 mm : 1030 : 16 - 2500 : No |
||
 |
WH 10 NC |
241423 | TOS Varnsdorf | 1987 | : 100 Spostamento asse X: 1130 mm : 1250 : 16 - 1500 : No : 650 |
|
 |
WHN 110 Q |
241727 | TOS Varnsdorf | 1999 | Sistema di controllo Heidenhain: TNC 426 : 110 Spostamento asse X: 2000 mm : 1400 : 0 - 2000 : No |
|
 |
BFK 160 |
201580 | UNION | 1980 | : 160 Spostamento asse X: 3000 mm : 2700 : - : : 300 |
|
 |
DBM 100 N |
231421 | DEFUM | 1999 | Sistema di controllo Fanuc: 16-M : 100 Spostamento asse X: 1830 mm : 1500 : 5 - 2000 : No |
|
 |
BFT 90/3 |
241213 | UNION | 1981 | Sistema di controllo Heidenhain: : 90 Spostamento asse X: 1600 mm : 1210 : 4 - 1600 : |
|
 |
441B-72 |
251248 | Lucas | 1967 | : 100 Spostamento asse X: 1500 mm : 1200 : 15 - 1550 : No : 600 |
|
 |

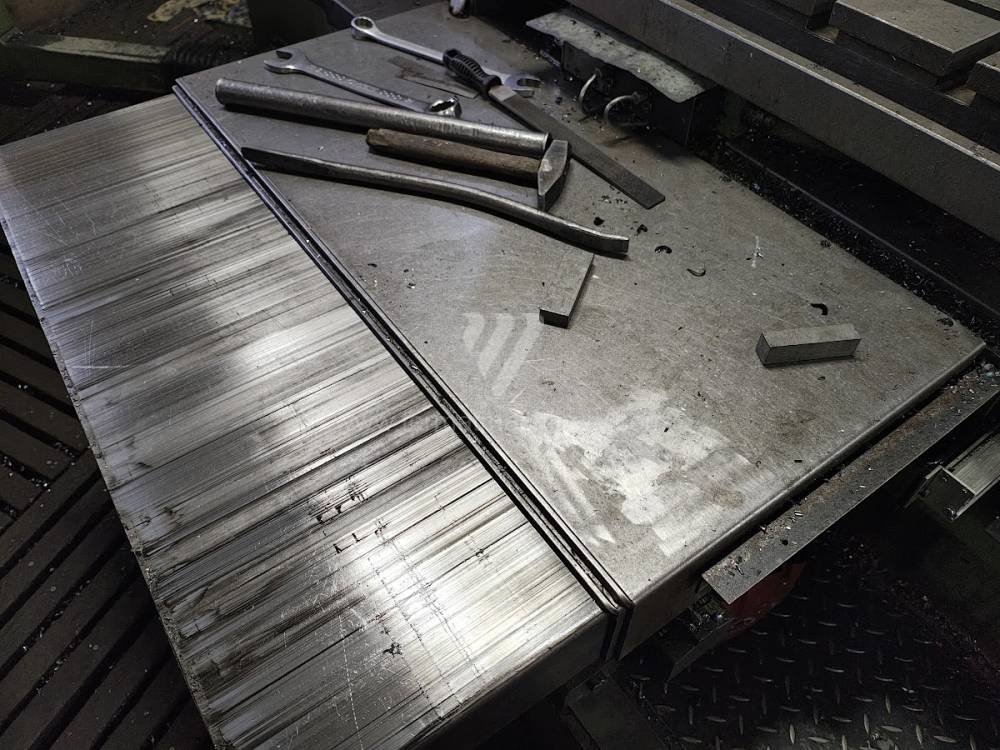

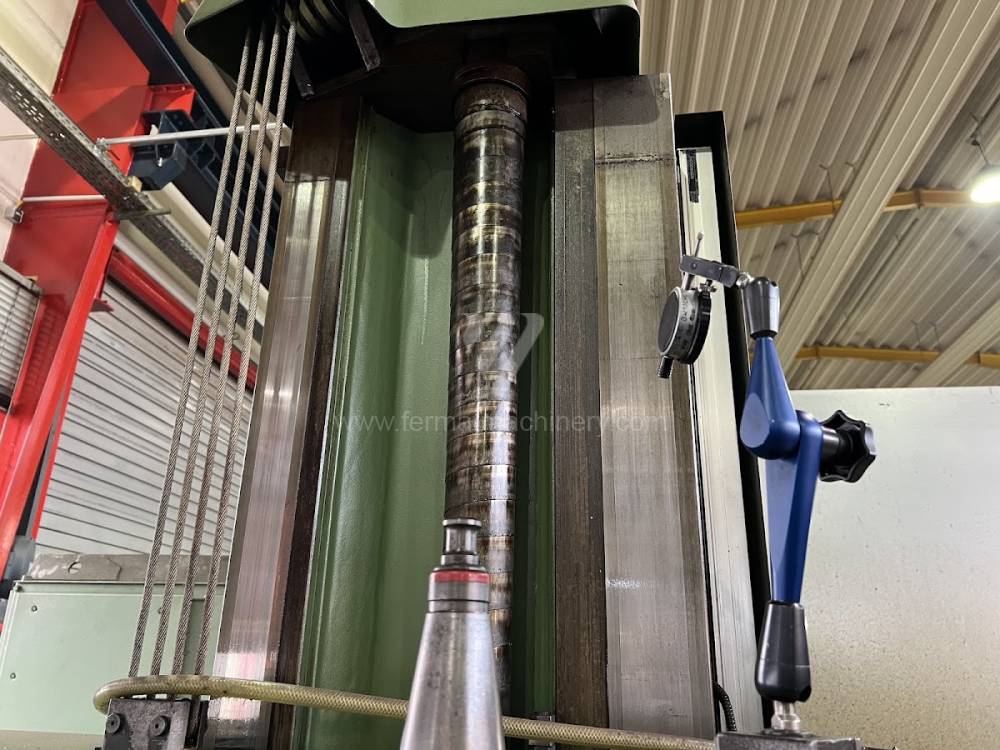

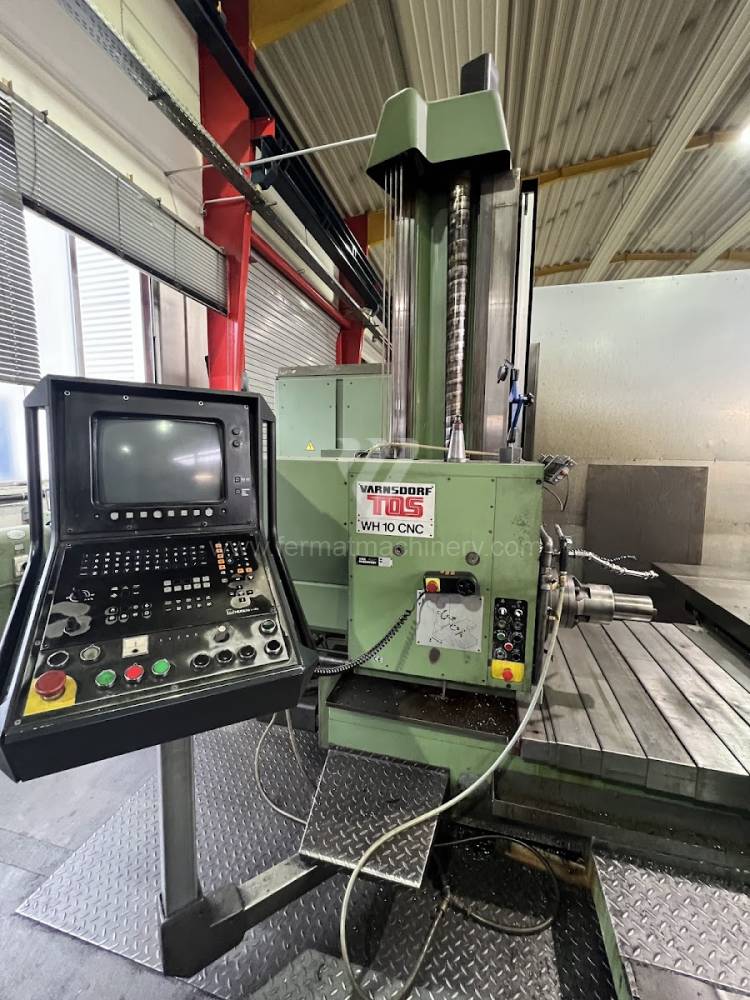

WH 10 CNC |
241948 | TOS Varnsdorf | 2000 | Sistema di controllo Heidenhain: TNC 426 : 100 Spostamento asse X: 1250 mm : 1120 : 10 - 1800 : No |
|
 |
WH 10 CNC |
242011 | TOS Varnsdorf | 1996 | Sistema di controllo Heidenhain: TNC 407 : 100 Spostamento asse X: 1250 mm : 1120 : 10 - 1800 : No |
|
 |
WH 10 CNC |
171452 | TOS Varnsdorf | Sistema di controllo Heidenhain: TNC 530 : 100 Spostamento asse X: 1250 mm : 1100 : 10 - 1200 : No |
||
 |
WMO B 105 MNC |
251054 | Wotan | : Sinumerik 820 : 105 Spostamento asse X: 1800 mm : 1300 : 9 - 1000 : No |
||
 |

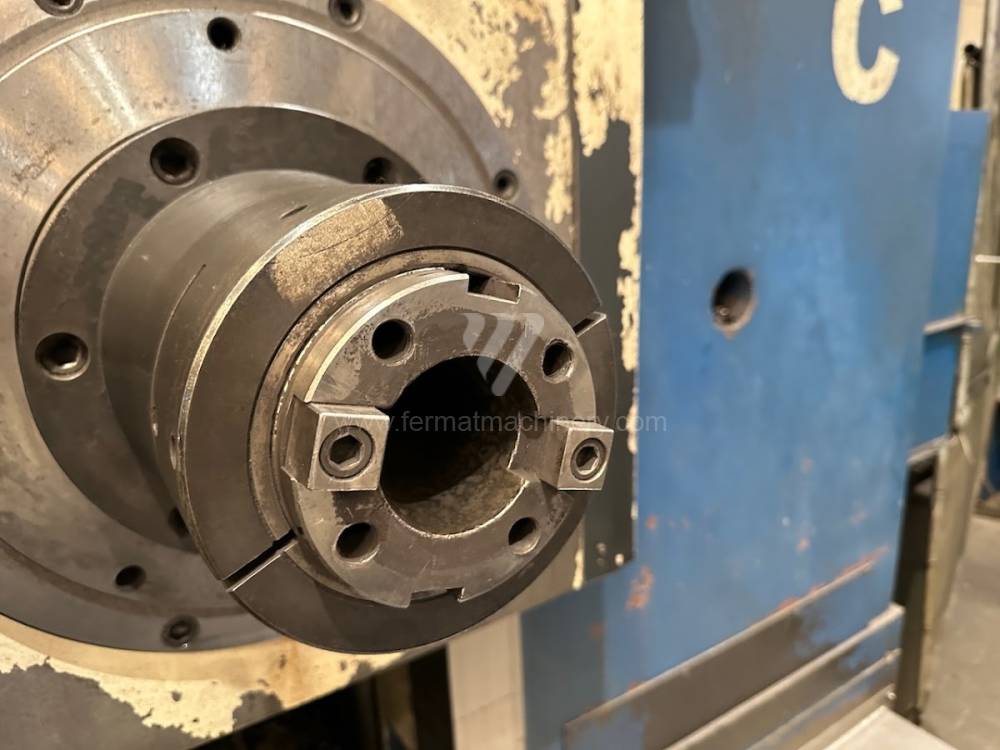

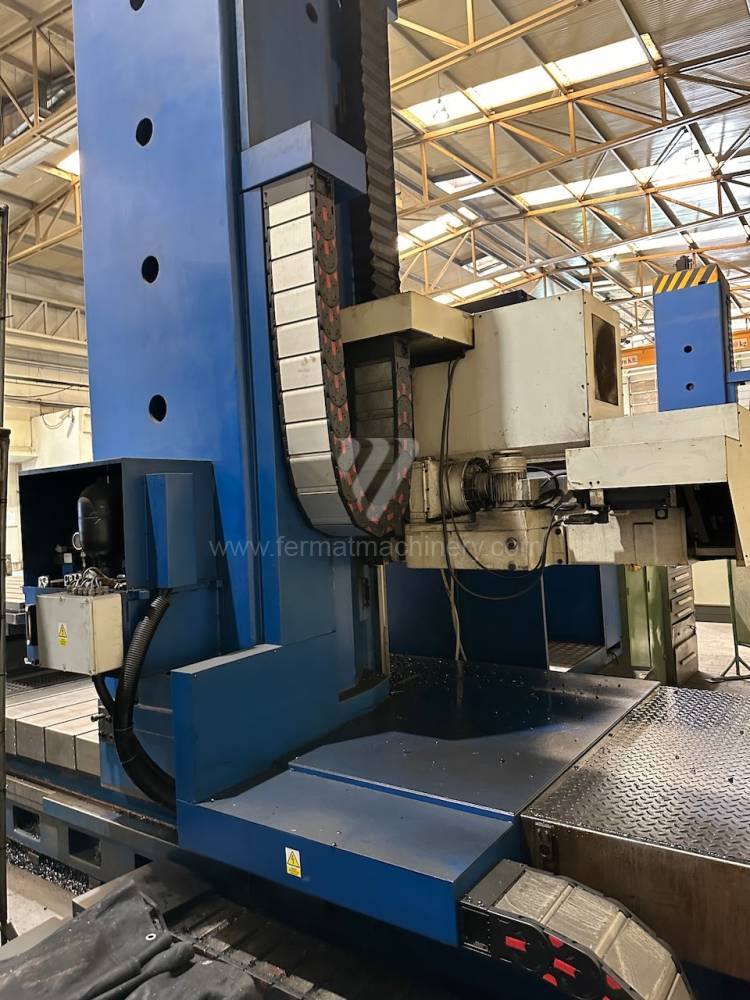

WHN 13 CNC |
241422 | TOS Varnsdorf | Sistema di controllo Heidenhain: TNC 530 : 130 Spostamento asse X: 3500 mm : 2000 : 0 - 1800 : No |
||
 |
WH 10 CNC |
242020 | TOS Varnsdorf | 1986 | Sistema di controllo Heidenhain: TNC 410 : 100 Spostamento asse X: 1250 mm : 1120 : 16 - 1250 : No |
|
 |
BO 110 |
241996 | KNUTH Werkzeugmaschinen GmbH | 2013 | : 110 Spostamento asse X: 900 mm : 900 : 8 - 1000 : No : 600 |
|
 |

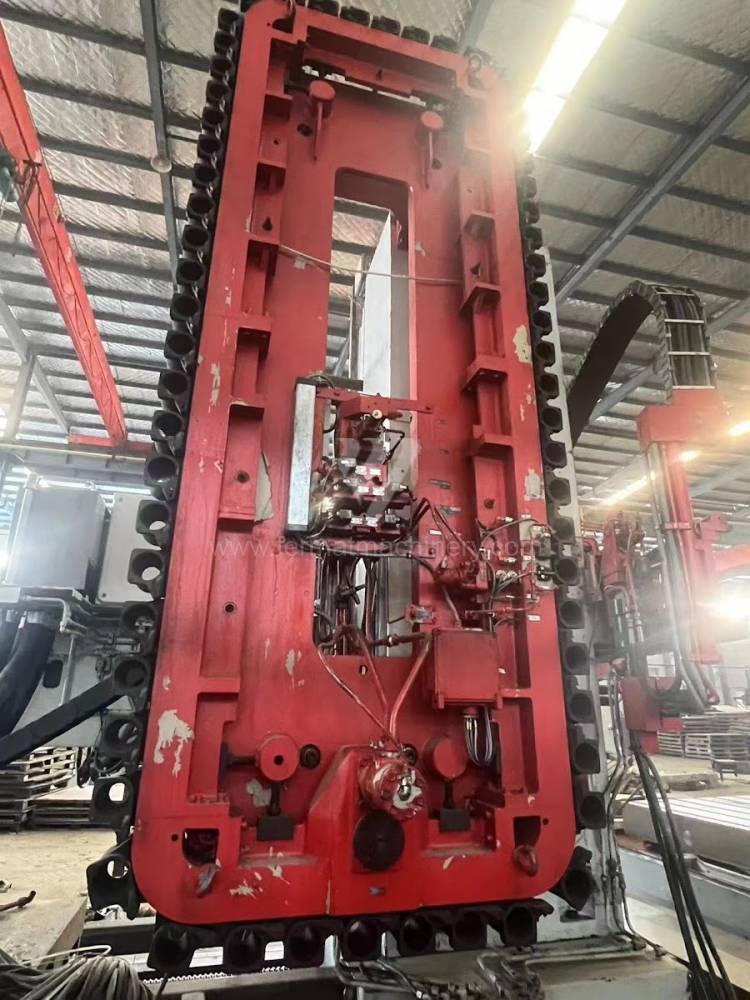

CFB 110 |
241569 | UNION | 2000 | Sistema di controllo Heidenhain: TNC 426 : 110 Spostamento asse X: 2000 mm : 1250 : 5 - 1400 : Sì |
|
 |
WH 10 NC |
221269 | TOS Varnsdorf | : 100 Spostamento asse X: 1250 mm : 900 : 16 - 1250 : No : 630 |
||
 |
WHN 13 |
251278 | TOS Varnsdorf | 1995 | Sistema di controllo Heidenhain: TNC 426 : 130 Spostamento asse X: 3500 mm : 2000 : 0 - 800 : No |
|
 |
WH 10 CNC |
251363 | TOS Varnsdorf | Sistema di controllo Heidenhain: TNC 620 : 100 Spostamento asse X: 1250 mm : 1030 : 16 - 2500 : No |
This kind of borer is equipped with a cross table allowing movement in two mutually perpendicular directions. The table is usually rotary, allowing found sides of the part to be machines in one clamping. However, if the workpiece does not exceed the dimensions of the machine, which is additionally equipped with an angular head, it is possible to machine from five sides with one clamping. Table type boring machines are mainly produced in smaller sizes, usually its spindle diameter is somewhere around 110 to 130 mm and the loading capacity of the table is approx. 20.000 kg.
Cross type boring machines
Table-type boring machines with cross-wise table movement, are designed for machining of small and medium-size workpieces of up to 50 tons and its table is movable only in the transverse direction, in the vertical direction the column moves along the bed. These machines are used for milling flat surfaces of long workpieces and diameter of spindle is somewhere around 80-160 mm.
All types of horizontal boring machines are conventional or CNC controlled. Among the most popular producers of CNC systems are Heidenhain, Siemens, Fanuc, Fagor.
Horizontal boring machines can be also equipped with automatic tool change which is primarily used for storage of tool holders, its manipulation and positioning without participation of human factor.
Among the main and most popular manufacturers of boring mills we have to mention: FERMAT, TOS, ŠKODA, PAMA, UNION, JUARISTI, SCHARMANN, KURAKI, WOTAN.
