12 Lista Griglia
12Alesatrice orizzontale Tabella - mandrino di diametro di 90
| Nome del prodotto | Nr. di inventario | Produttore | Anno di fabbricazione | Parametri | ||
|---|---|---|---|---|---|---|
 |
TK 6511 B |
242010 | SCHIESS GmbH | 2008 | : Sinumerik 840 D : 110 Spostamento asse X: 2000 mm : 1500 : 10 - 2000 : No |
|
 |
W 100 A |
191457 | TOS Varnsdorf | : 100 Spostamento asse X: 1600 mm : 1120 : 7 - 1120 : No : 900 |
||
 |
40T |
182013 | Lucas | 2018 | Sistema di controllo Fanuc: 0i-MF : 130 Spostamento asse X: 3657 mm : 3048 : 10 - 3000 : Sì |
|
 |
W 100 A |
241881 | TOS Varnsdorf | 1992 | : 100 Spostamento asse X: 1500 mm : 1250 : 7 - 1120 : No : |
|
 |
WXH 100 |
241325 | KOVOSVIT MAS, a.s. | : 100 Spostamento asse X: 1200 mm : 800 : 6 - 3000 : No : |
||
 |

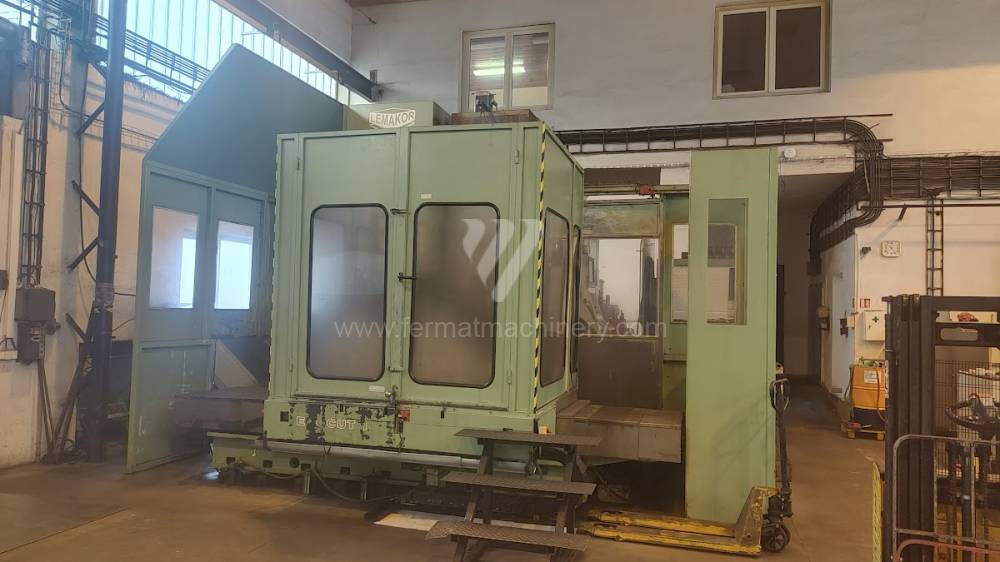

Ecocut 1 |
242006 | Scharmann | 1985 | Sistema di controllo Heidenhain: TNC 530 : 125 Spostamento asse X: 2000 mm : 1600 : 12 - 3000 : No |
|
 |

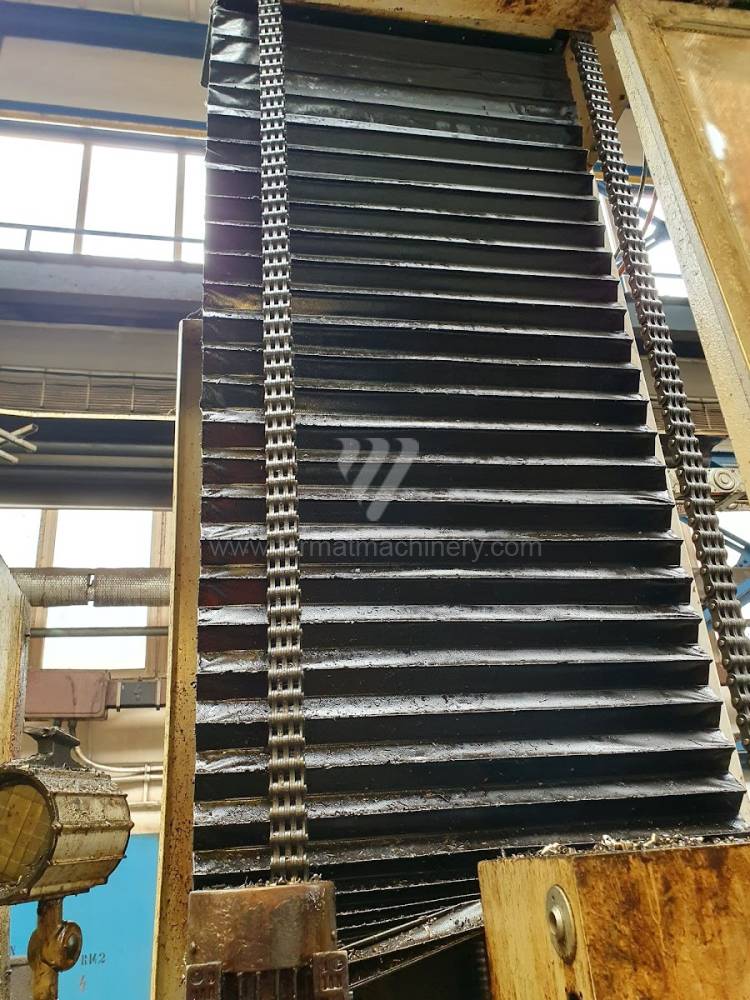

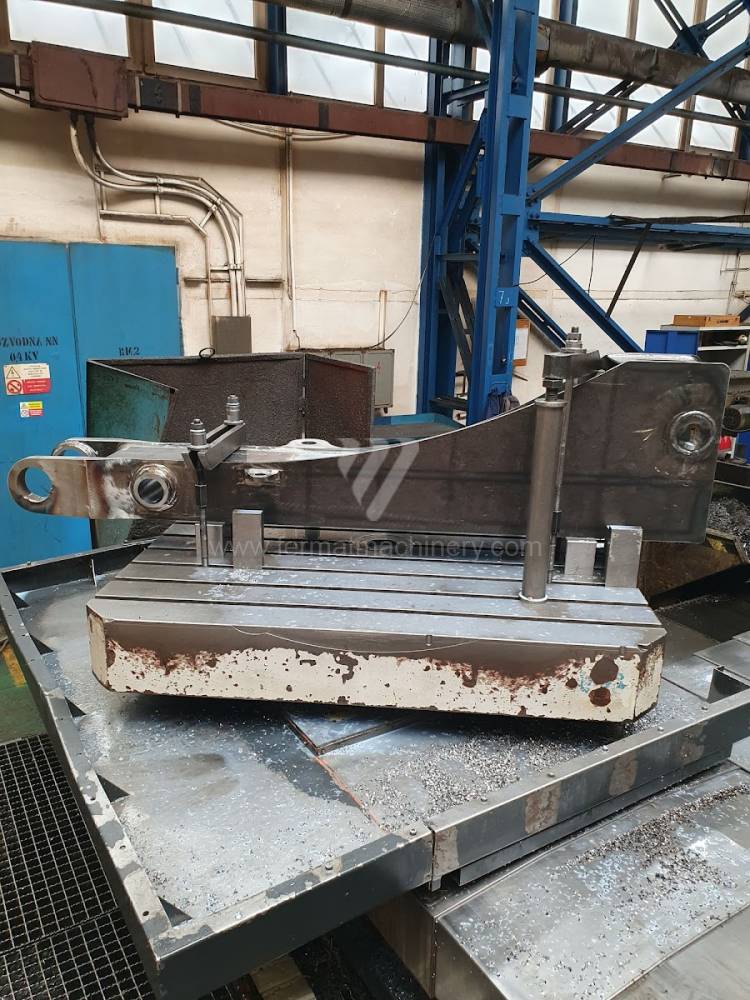

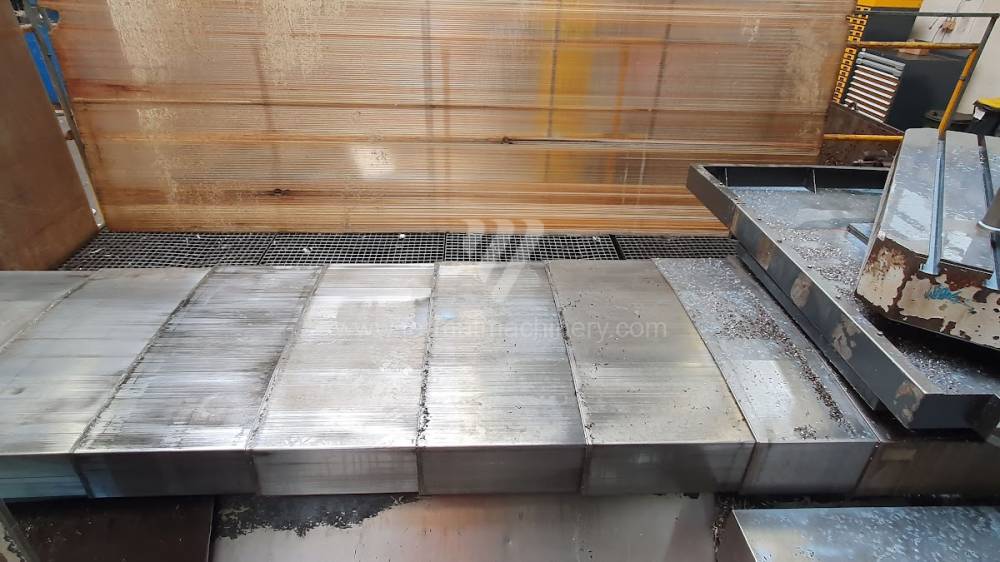

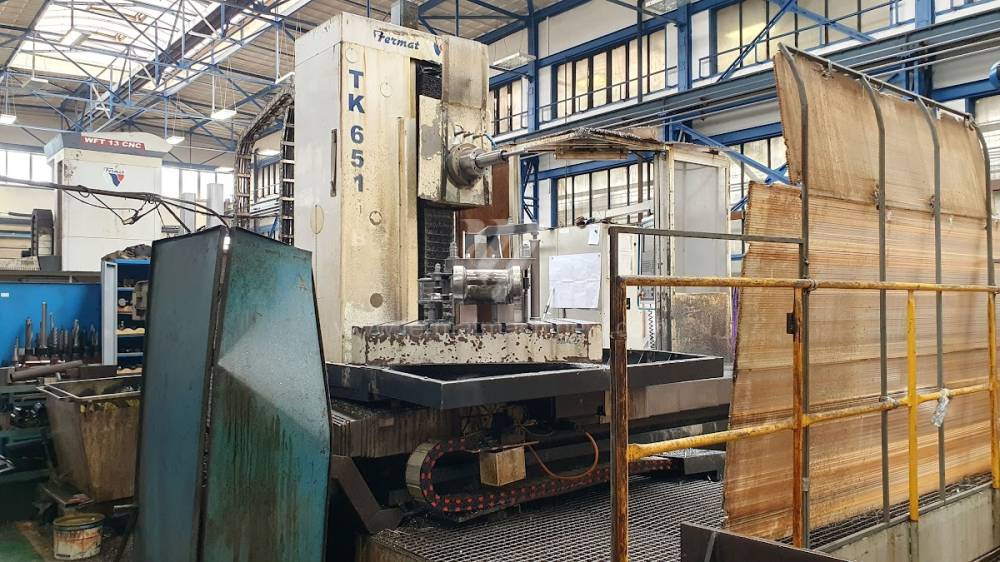

TK 6511 B |
241971 | Fermat | 2007 | Sistema di controllo Heidenhain: TNC 530 : 110 Spostamento asse X: 2500 mm : 1500 : 0 - 2500 : Sì |
|
 |

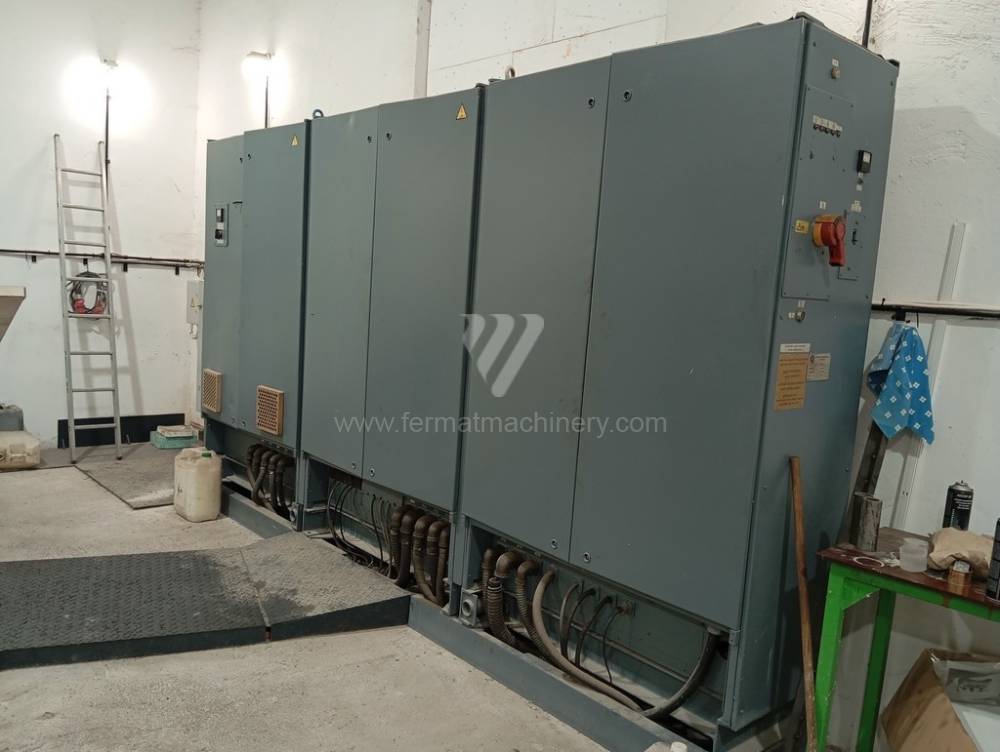

2A622-1 |
241836 | Stanko Russia | Sistema di controllo Heidenhain: : 110 Spostamento asse X: 1600 mm : 1000 : 12 - 1600 : No |
||
 |
WH 10 NC |
251056 | TOS Varnsdorf | 1985 | Sistema di controllo ESA: S430 : 100 Spostamento asse X: 1250 mm : 1100 : 16 - 1500 : No |
|
 |

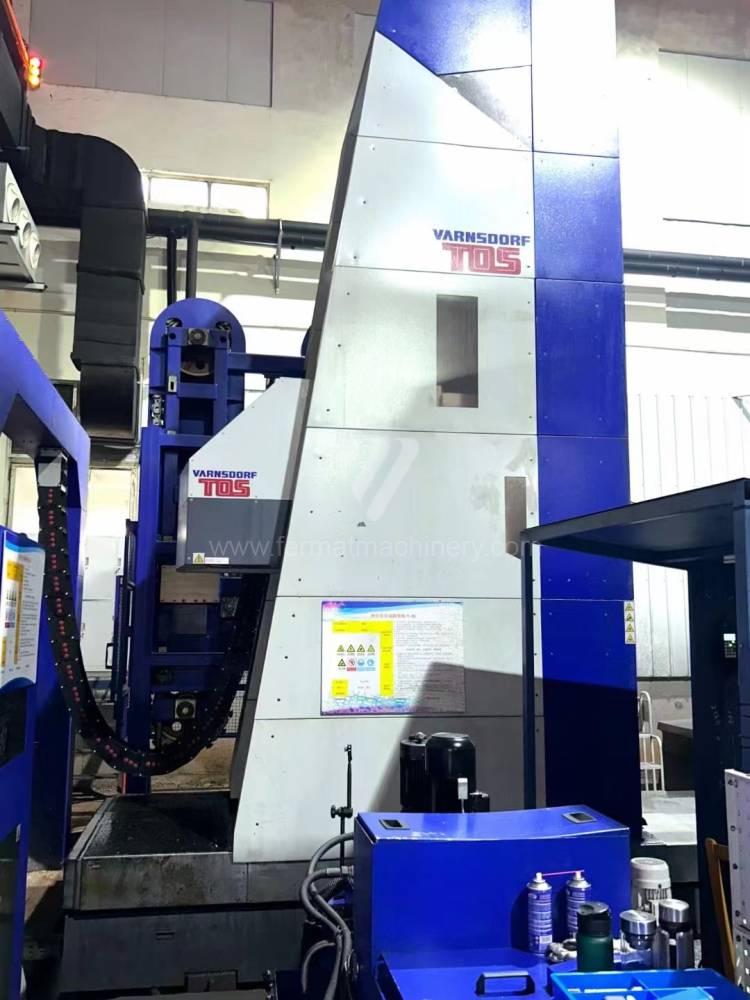

WHQ 15 CNC |
241496 | TOS Varnsdorf | 2021 | : Sinumerik 840 D : 150 Spostamento asse X: 4000 mm : 3000 : 10 - 3000 : Sì |
|
 |

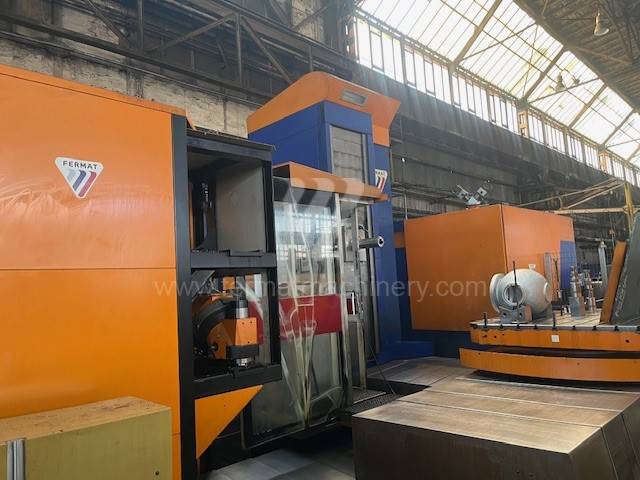

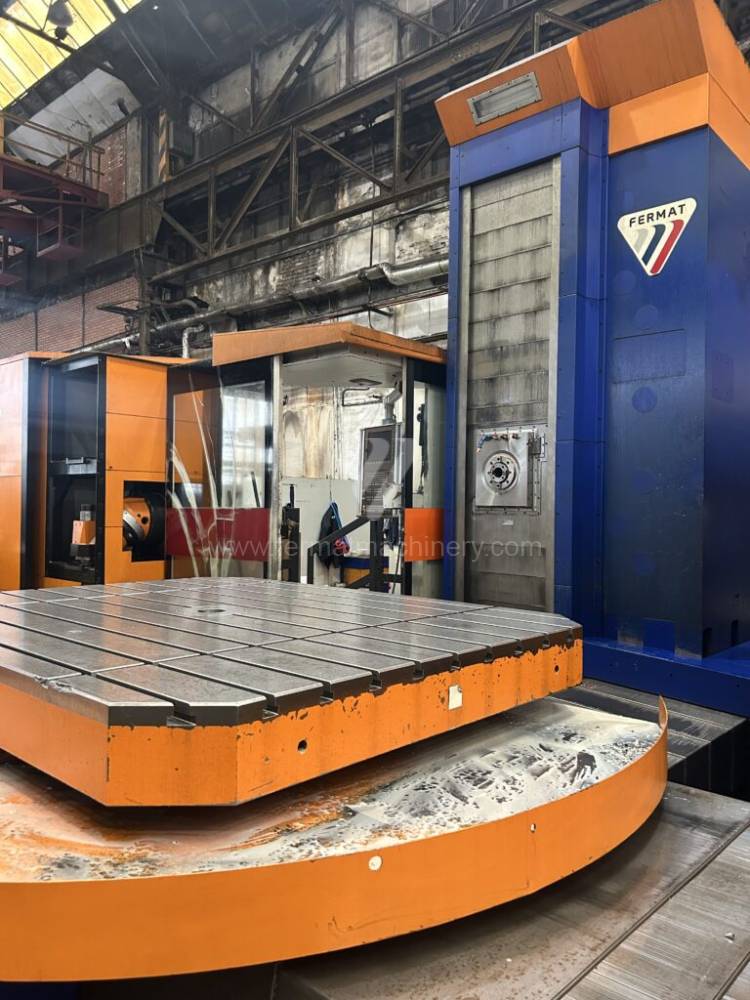

WFT 13 R CNC |
251175 | Fermat | 2014 | Sistema di controllo Heidenhain: TNC 530 : 130 Spostamento asse X: 2000 mm : 2000 : 10 - 3000 : Sì |
|
 |

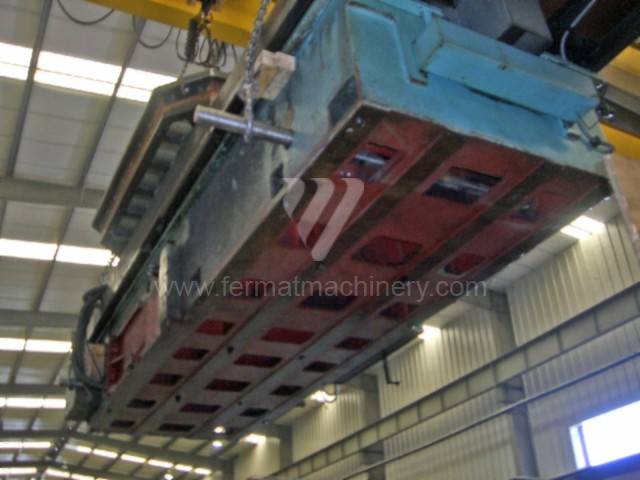

WHN 13 |
251345 | TOS Varnsdorf | : 130 Spostamento asse X: 3500 mm : 2000 : 5 - 2500 : No : |
||
 |

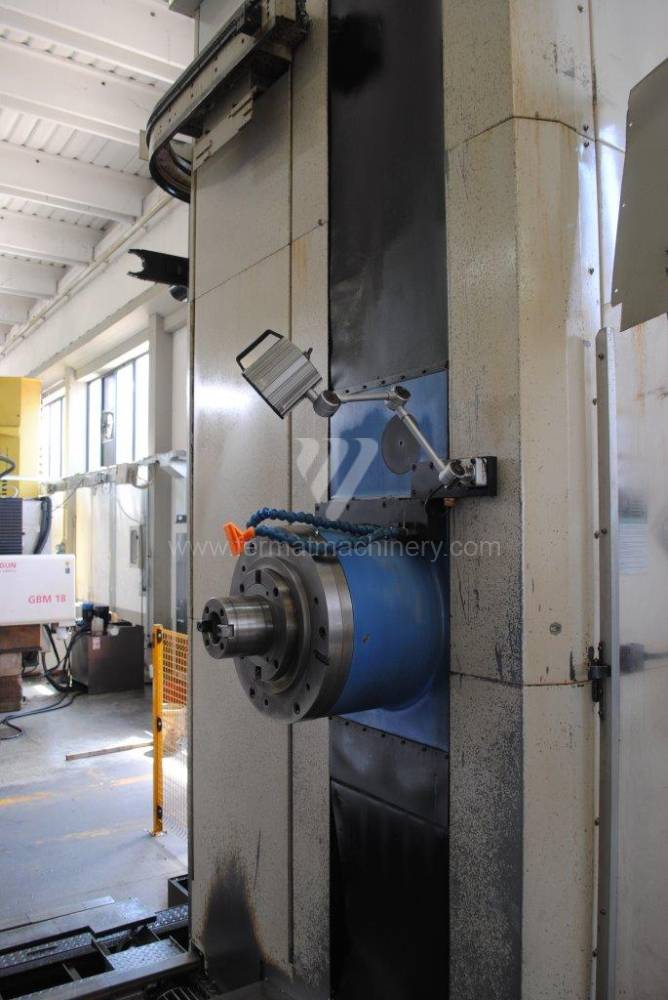

KBN 135 |
241058 | KIA | 2003 | Sistema di controllo Fanuc: 16-M : 135 Spostamento asse X: 3000 mm : 2000 : 5 - 2000 : Sì |
|
 |
IXN2000 |
241206 | CHETO | 2022 | : CNC 8065 : Spostamento asse X: 2000 mm : 1200 : 0 - 6000 : |
|
 |

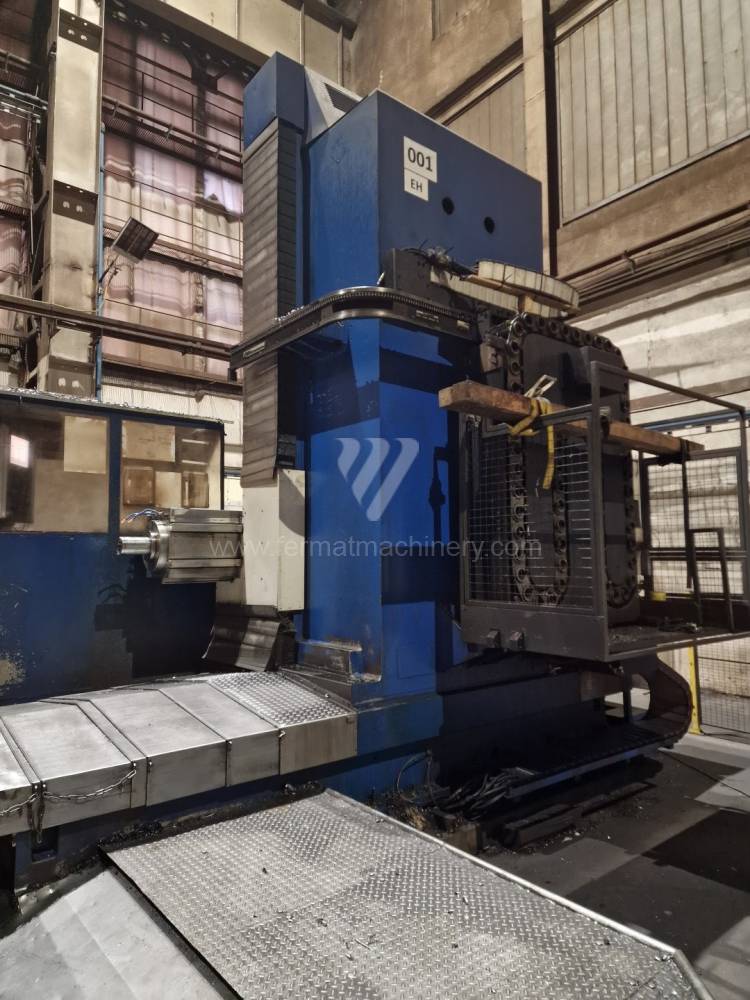

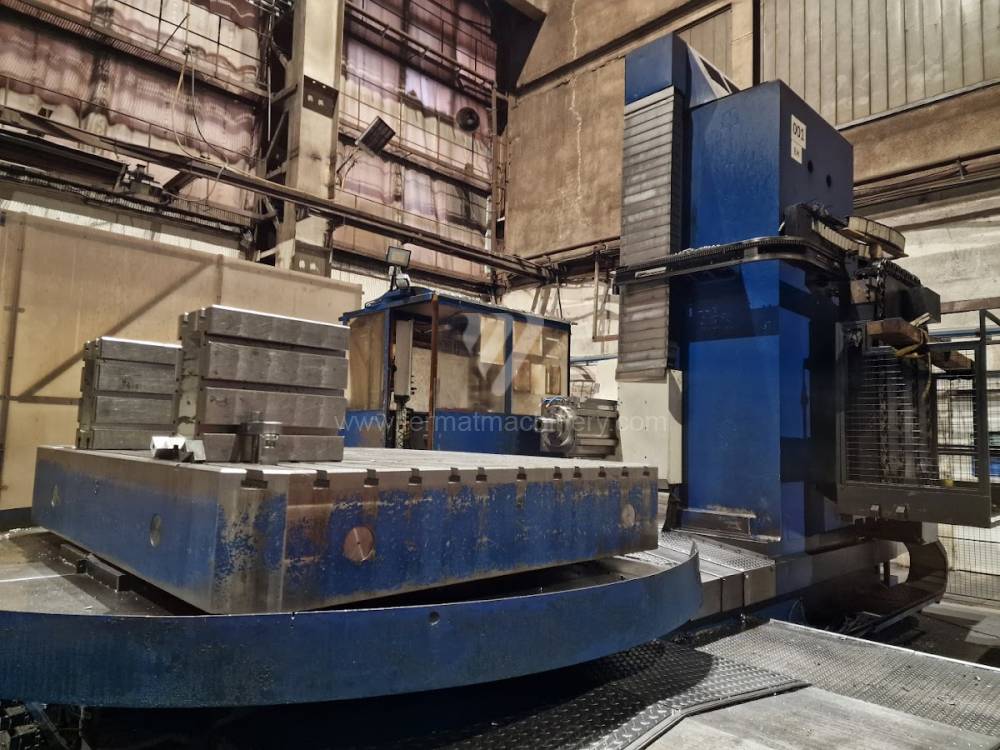

WRFT 130 CNC |
251341 | Fermat | 2008 | Sistema di controllo Heidenhain: TNC 530 : 130 Spostamento asse X: 4200 mm : 2500 : 10 - 3000 : No |
|
 |
WHN 9B |
251006 | TOS Varnsdorf | 1981 | : 90 Spostamento asse X: 1250 mm : 900(1120) : 0 - 1120 : No : 680 |
|
 |
BFT 102 |
242070 | UNION | 1997 | Sistema di controllo Heidenhain: TNC 426 : 102 Spostamento asse X: 1600 mm : 1210 : 4 - 1600 : |
|
 |

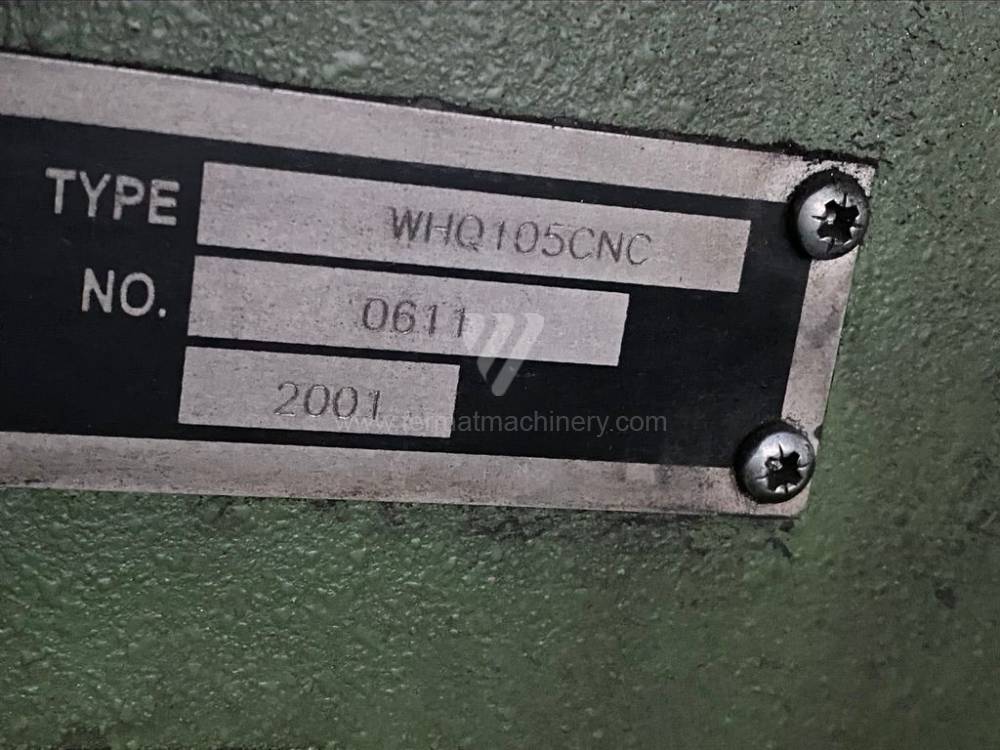

WHQ 105 CNC |
231912 | TOS Varnsdorf | 2001 | Sistema di controllo Heidenhain: TNC 430 : 105 Spostamento asse X: 1800 mm : 1250 : 0 - 2800 : No |
|
WH 10 NC |
251150 | TOS Varnsdorf | Sistema di controllo Heidenhain: TNC 124 : 100 Spostamento asse X: 1250 mm : 900 : 16 - 1250 : No |
|||
 |

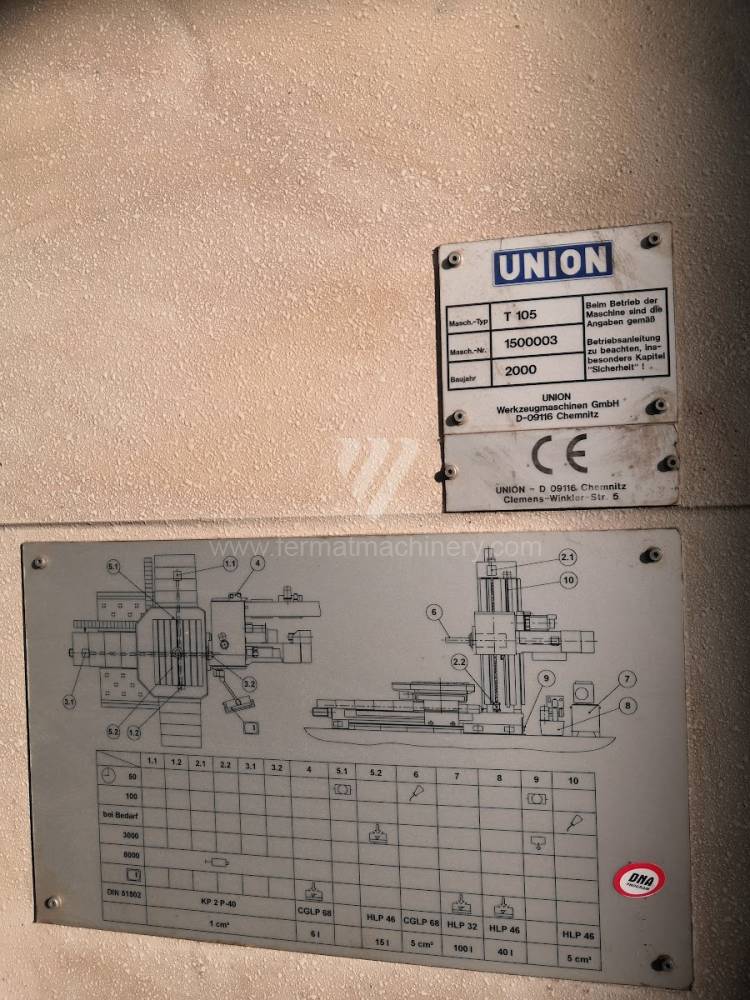

T 105 |
251213 | UNION | 2000 | Sistema di controllo Heidenhain: TNC 426 : 105 Spostamento asse X: 2000 mm : 1600 : 5 - 2000 : No |
|
 |

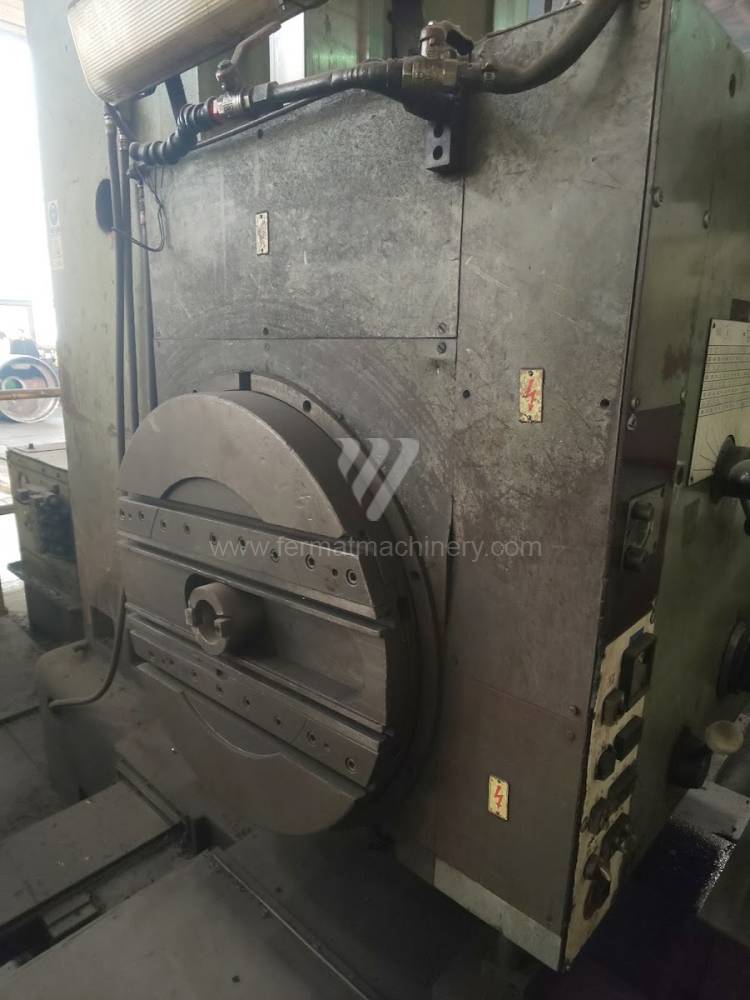

BFT 110/5 |
231231 | UNION | Spostamento asse X: 1985 mm : 1270 : 1270 : 25400 Dimensioni del banco : 1400 x 1600 mm : 110 |
||
 |
W 100 A |
241949 | TOS Varnsdorf | 1984 | : 100 Spostamento asse X: 1500 mm : 1250 : 7 - 1120 : No : |
|
 |
WH 10 NC |
221109 | TOS Varnsdorf | 1985 | Sistema di controllo NCT: 90 : 100 Spostamento asse X: 1250 mm : 900 : 16 - 1250 : No |
|
 |
WHN 9 B CNC |
192075 | TOS Varnsdorf | 1982 | Sistema di controllo Mefi: CNC 859 : 90 Spostamento asse X: 1250 mm : 900 : 10 - 1100 : No |
|
 |
WHN 13 P CNC |
191459 | TOS Varnsdorf | 2024 | Sistema di controllo Heidenhain: TNC 640 : 130 Spostamento asse X: 3500 mm : 2000 : 10 - 3000 : Sì |
This kind of borer is equipped with a cross table allowing movement in two mutually perpendicular directions. The table is usually rotary, allowing found sides of the part to be machines in one clamping. However, if the workpiece does not exceed the dimensions of the machine, which is additionally equipped with an angular head, it is possible to machine from five sides with one clamping. Table type boring machines are mainly produced in smaller sizes, usually its spindle diameter is somewhere around 110 to 130 mm and the loading capacity of the table is approx. 20.000 kg.
Cross type boring machines
Table-type boring machines with cross-wise table movement, are designed for machining of small and medium-size workpieces of up to 50 tons and its table is movable only in the transverse direction, in the vertical direction the column moves along the bed. These machines are used for milling flat surfaces of long workpieces and diameter of spindle is somewhere around 80-160 mm.
All types of horizontal boring machines are conventional or CNC controlled. Among the most popular producers of CNC systems are Heidenhain, Siemens, Fanuc, Fagor.
Horizontal boring machines can be also equipped with automatic tool change which is primarily used for storage of tool holders, its manipulation and positioning without participation of human factor.
Among the main and most popular manufacturers of boring mills we have to mention: FERMAT, TOS, ŠKODA, PAMA, UNION, JUARISTI, SCHARMANN, KURAKI, WOTAN.
