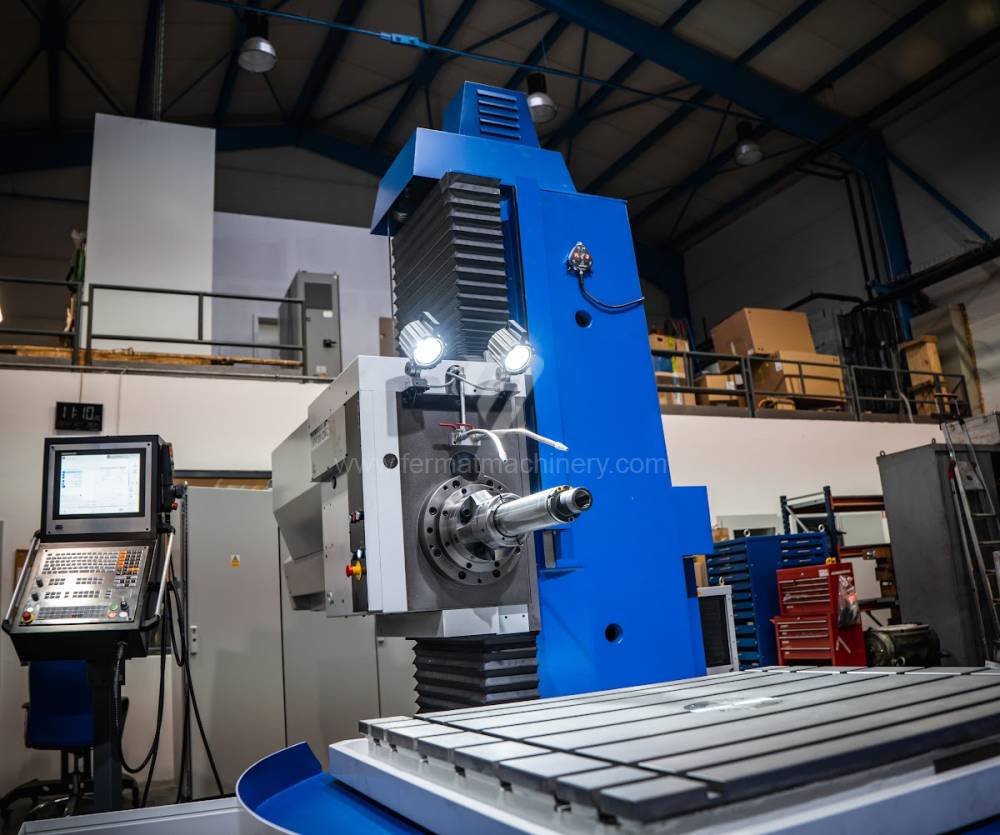

Bohrwerk / Tischbohrwerk Spindeldurchmesser über 90 mm / WH 10 CNC

• Inventarnummer 251364
• Maschinentyp WH 10 CNC
• Hersteller TOS Varnsdorf

Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten.

Beschreibung

spindle motor: Siemens 17.5 kW S1 (26.25 kW S6-40%)
control system: including options 19,20 (extended programming functions, graphics during testing and machining)
controlled axes: X/Y/Z/W/B
workpiece probe: Heidenhain TS 460, including option 17 (touch probe cycles)
handwheel: Heidenhain HR510
measuring, rulers: Heidenhain, EnDat 22 (X,Y,Z LC415)
displacement motors: Heidenhain QSY
external tool cooling: 1.5 bar 38 l/min
tool change: manual change, cavity blow
removal of chips: collecting tub
X/Z cover: telescopic
covering Y: bellows
work air pressure: 6 bar
positioning accuracy: <0.02mm
dimensions of the machine: d4700 x w2900 x h3300mm (without cover)

Color: white / blue RAL5010
Warranty: 12 months
Documentation: passport, electrical, PLC, manual
Including anchor material and special tools.
