Machines with short delivery time, partially, or completely assembled at FERMAT, or disassembled in warehouse.

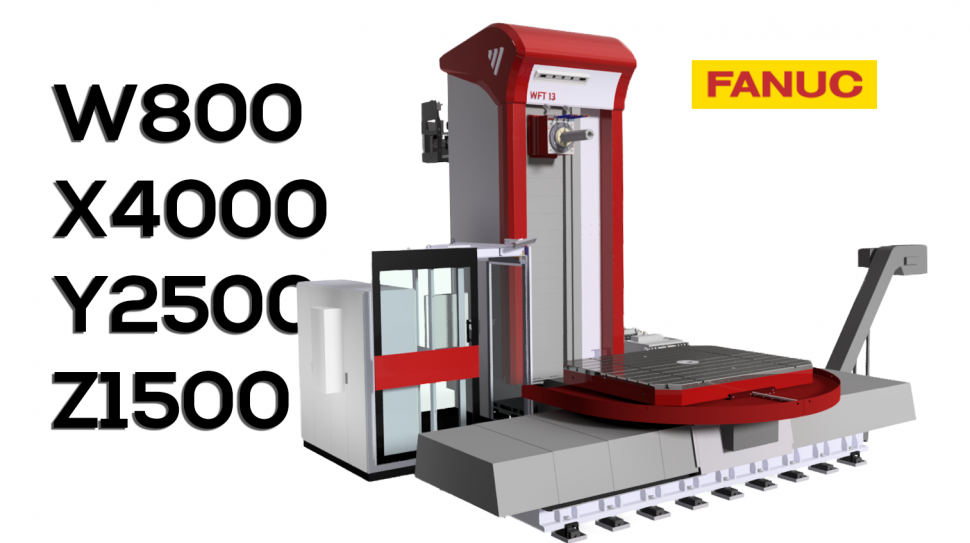

WFT 15 Horizontal boring mill
The WFT 15 is table-type horizontal boring mill for high-performance machining with maximum utilization of accessories and milling heads for efficient machining of workpieces of up to 20 tons.
| Parameter
|
units |
|
| Table travel - X-axis
|
mm | 4000 |
| Headstock travel - Y-axis
|
mm | 2500 |
| Column travel - Z-axis
|
mm | 1500 |
| Spindle travel - W-axis
|
mm | 800 |
| Spindle diameter
|
mm | 150 |
| Max. spindle speed
|
rpm | 3000 |
| Table plate size
|
mm | 1800x2200 |
| Table load
|
kg | 20000 |
| Max. power
|
kW | 37 |
| Max. torque
|
Nm | 2210 |
| Control system
|
Fanuc Fermat | |
